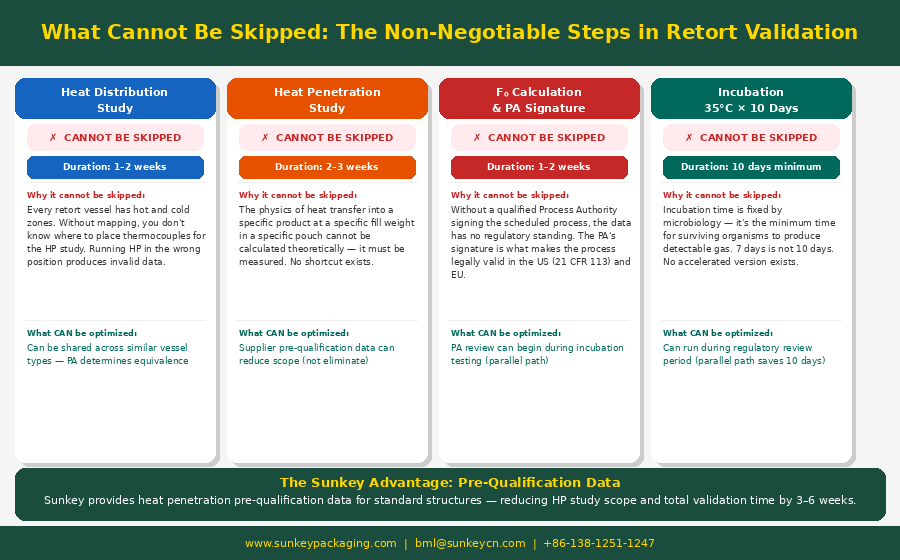

1. Why Process Validation Cannot Be Skipped

Process validation for retort pouches is not a bureaucratic formality. It is the scientific proof that your specific product, in your specific pouch structure, processed in your specific retort vessel, achieves commercial sterility every time. Without it, you have a hypothesis — not a safe product.

The consequence of skipping or shortcutting validation is not regulatory inconvenience. For low-acid foods — which includes virtually all meat, pet food, seafood, and ready-to-eat meal products — a sterilization failure allows Clostridium botulinum to survive and produce botulinum toxin in the package. This is one of the most potent biological toxins known, lethal in nanogram quantities, colorless, odorless, and undetectable without laboratory testing.

Every step of the validation framework described in this article exists because of documented historical failures: botulism outbreaks, mass recalls, and fatalities traced to inadequate thermal processing. The 14–22 week timeline is not arbitrary — each phase generates specific data that cannot be generated any other way or at any faster rate.

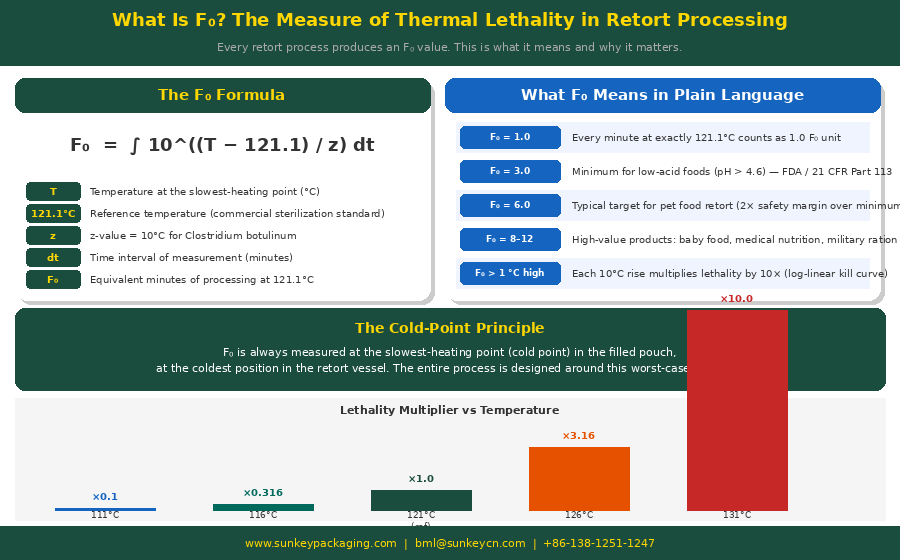

2. The F-Value: The Unit of Thermal Lethality

The F-value (specifically F₀, pronounced 'F-naught') is the quantitative measure of a thermal process's ability to destroy microorganisms. It is expressed as the equivalent number of minutes of processing at 121°C (250°F), the standard reference temperature for sterilization of low-acid foods.

To understand F₀, you first need to understand two related concepts: the D-value and the z-value. The D-value is the time at a given temperature required to reduce a bacterial population by 90% (one log cycle). For Clostridium botulinum spores in a neutral pH product, the D₁₂₁ value is approximately 0.21 minutes. The z-value describes how the D-value changes with temperature — for C. botulinum, the z-value is 10°C, meaning that for every 10°C increase in temperature, the D-value drops tenfold (killing happens 10× faster).

These relationships produce the lethal rate (L), a dimensionless number that expresses how effective the temperature at any given moment is relative to the 121°C reference: L = 10^((T − 121) / 10). At 121°C, L = 1.0. At 131°C, L = 10.0 — ten times more lethal per minute. At 111°C, L = 0.1 — ten times less lethal. F₀ is the integral of L over the entire processing time: F₀ = ∫L dt, summed at intervals (typically every 30 seconds) through the come-up, hold, and cooling phases of the retort cycle.

The regulatory minimum F₀ for low-acid foods under 21 CFR Part 113 is 3.0 minutes — this represents a 12-log reduction (12D) of C. botulinum spores, which is the internationally accepted food safety standard. In practice, most commercial products are designed for significantly higher F₀ values (6–15 minutes) to provide safety margin and to account for worst-case load conditions within the retort vessel.

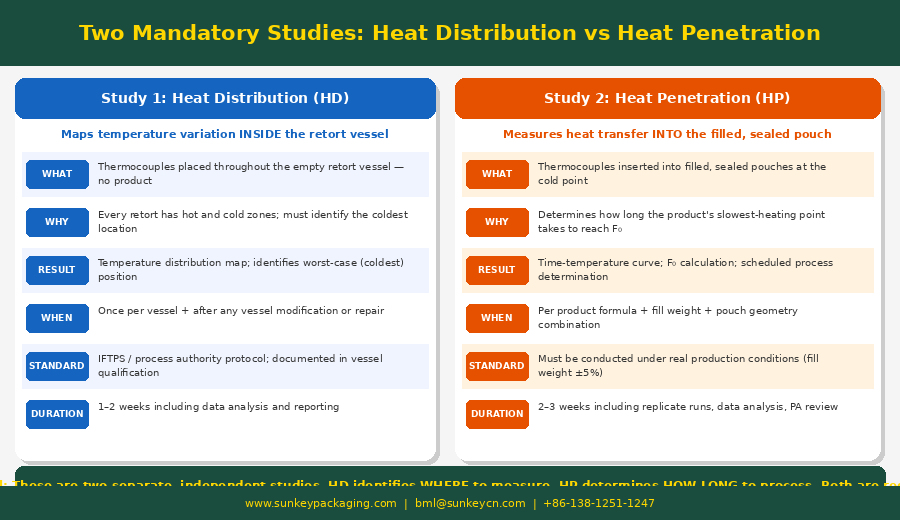

3. Heat Distribution Study (HDS): Step 1 — Qualifying the Retort Vessel

The Heat Distribution Study answers one question: does steam distribute uniformly throughout the retort vessel during processing? If it does not — if certain zones within the vessel heat more slowly than others — then pouches processed in those cold zones may not receive the required F₀, even if the retort's reference thermocouple shows the correct temperature.

HDS is performed with no product in the vessel — it characterizes the vessel itself, not the product. Multiple thermocouples (minimum 9, typically 12–16 per vessel per the NFPA Bulletin 26 guidelines) are positioned at critical points throughout the vessel: front, rear, top, bottom, centre, and near the steam inlet and condensate drain. The vessel is then operated through complete cycles at the target processing temperature.

The acceptance criterion for HDS is that all thermocouple positions must reach the target sterilization temperature within the scheduled come-up time, and the temperature spread across all positions must not exceed 0.5°C once the hold phase begins. This confirms that every pouch loaded in any position of the vessel will receive equivalent heat exposure.

4. Heat Penetration Study (HPS): Step 2 — Measuring Lethality at the Cold Spot

Where HDS characterizes the vessel, HPS characterizes the product. The Heat Penetration Study answers a different and more critical question: how fast does heat penetrate to the coldest point inside a filled, sealed pouch — and how much F₀ accumulates at that point during the complete processing cycle?

The cold spot in a retort pouch product is the location that heats slowest. For homogenous liquid or semi-liquid products (broths, pâtés, wet pet food), heat transfer occurs primarily by convection, and the cold spot is typically at the geometric centre of the pouch — the point furthest from all heated surfaces. For solid or particulate products with limited convection, the cold spot may be at the centre of the largest solid piece, and must be determined empirically.

HPS is performed with production-representative filled pouches — same formulation, same fill weight, same headspace, same pouch structure as the commercial product. Calibrated thermocouples are inserted into the pouch through a sealed entry point and positioned at the cold spot confirmed by HDS. The pouches are then loaded into the retort vessel in the cold zone position confirmed by HDS, and processed through complete cycles.

Data is logged at intervals of 30 seconds or less throughout the entire cycle: from the moment the retort door closes, through come-up, hold, and cooling, until the pouch is removed. This complete time-temperature profile at the cold spot is the primary dataset used for F₀ calculation.

5. Calculating F₀: From Time-Temperature Data to a Compliance Number

F₀ calculation is straightforward once the time-temperature data from HPS is available. The calculation proceeds in three steps applied to the cold-spot temperature data collected during HPS.

Step 1: For each time point in the dataset, calculate the lethal rate (L) using the formula L = 10^((T − 121) / 10), where T is the cold-spot temperature in degrees Celsius at that time point. At temperatures below approximately 90°C, L is so small as to be negligible (L = 0.0001 at 90°C) and some calculation methods set a minimum temperature threshold below which lethality is not counted.

Step 2: Multiply each L value by the time interval (Δt, typically 0.5 minutes) to get the lethality contribution of each interval. Step 3: Sum all lethality contributions from time zero (retort door close) through the end of the cooling phase (typically when the cold-spot temperature falls below 90°C). This sum is the F₀ value delivered to the cold spot.

For a typical 121°C processing cycle with 30-minute hold time, the F₀ breakdown is approximately: come-up phase (8–12 minutes, cold spot temperature rising from ambient to 121°C) contributes approximately 0.5–2.0 minutes of F₀; the hold phase at 121°C contributes F₀ equal to the hold time in minutes; the cooling phase (cold spot declining from 121°C) contributes approximately 0.5–1.5 minutes of F₀. Total F₀ for a 30-minute hold cycle at 121°C is typically 32–34 minutes — well above the minimum requirement for most low-acid foods.

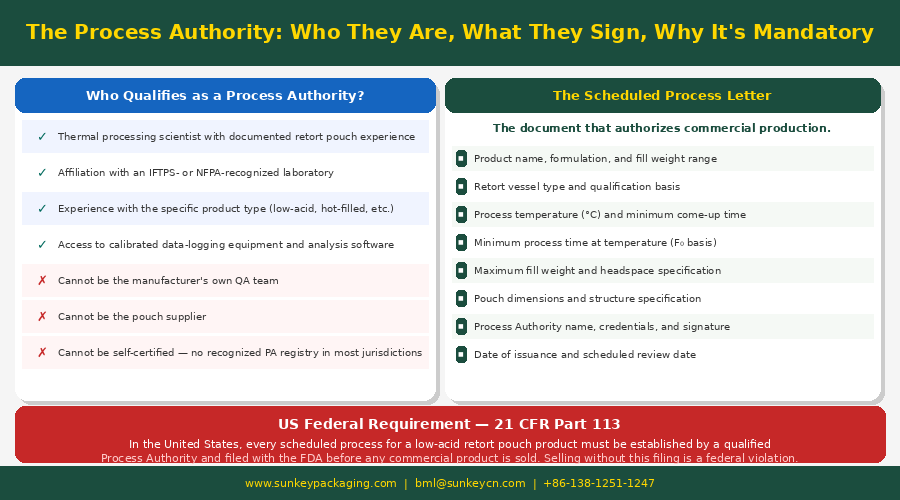

6. The Process Authority: Who They Are and What They Must Sign

A Process Authority is a person or organization with the scientific expertise, experience, and credentials to evaluate and establish scheduled processes for thermally processed foods. Under 21 CFR Part 113, no scheduled process for a low-acid food may be commercially used unless it has been established by a competent process authority.

The term 'competent process authority' is defined by the FDA as a person having expert knowledge obtained through appropriate training and experience in the scientific principles and methods of thermal process establishment for low-acid foods. In practice, this means a person or organization with formal training in food science, microbiology, and heat transfer, typically demonstrated through credentials from one or more of the following bodies: the Institute of Food Technologists (IFT), the National Food Processors Association (NFPA), or an accredited university food science program.

For manufacturers entering the US market, qualified Process Authorities include academic institutions with food science departments (Cornell University's Department of Food Science is one of the most widely recognized), NFPA-affiliated consulting organizations, and accredited independent food safety laboratories. Budget 4–8 weeks for Process Authority review and scheduled process establishment after all HDS and HPS data has been collected.

7. FDA 21 CFR Part 113: Filing Requirements for the US Market

In the United States, thermally processed low-acid foods packed in hermetically sealed containers — which explicitly includes retort pouches — are regulated under 21 CFR Part 113, the Low-Acid Canned Food (LACF) regulation. This regulation has been in force since 1979 and applies to any company producing such products for sale in the United States, regardless of where the product is manufactured.

The core filing requirement is found in 21 CFR Part 113.40 (Process filing): the scheduled process for every product/container/retort combination must be filed with the FDA before the product is commercially distributed. This filing is submitted through the FDA's Process Filing System (PFS) using Form FDA 2541a (for continuous retort systems) or Form FDA 2541d (for batch retort systems). The filing must be made by the processor — either the manufacturer or their US distributor/importer acting as the responsible US agent.

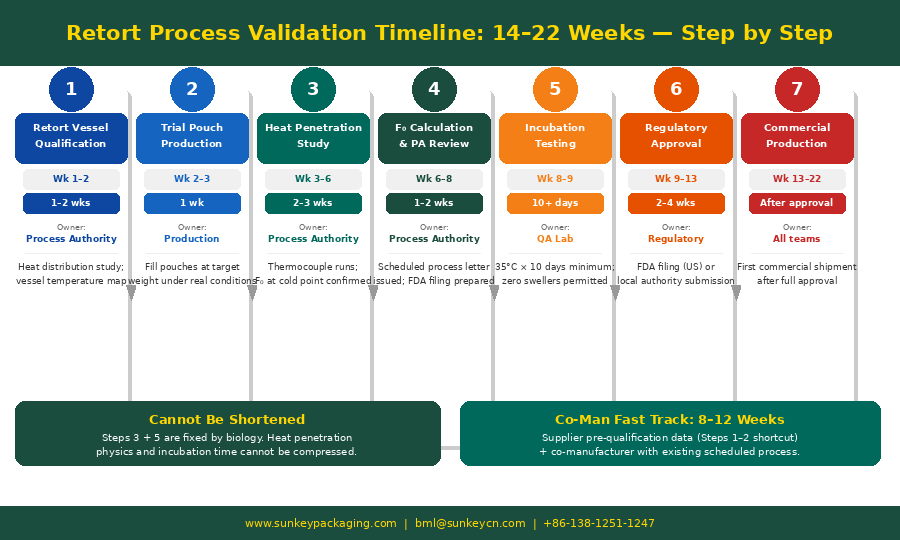

8. Complete Timeline: 14–22 Weeks You Cannot Compress

Understanding the process validation timeline is critical for any manufacturer planning a retort pouch product launch or switching from cans to pouches. The 14–22 week range is not conservative padding — each phase has a minimum duration defined by either biological reality (incubation) or the volume of data that must be collected and reviewed.

Phases 1 and 2 can follow each other back-to-back in the same vessel without delay between them. Phase 3 (data analysis) can begin as soon as the last HPS run is complete. Phases 3 and 4 (incubation) can run in parallel — the incubation test begins as soon as production-representative pouches are available from the HPS runs, while the Process Authority simultaneously reviews the data.

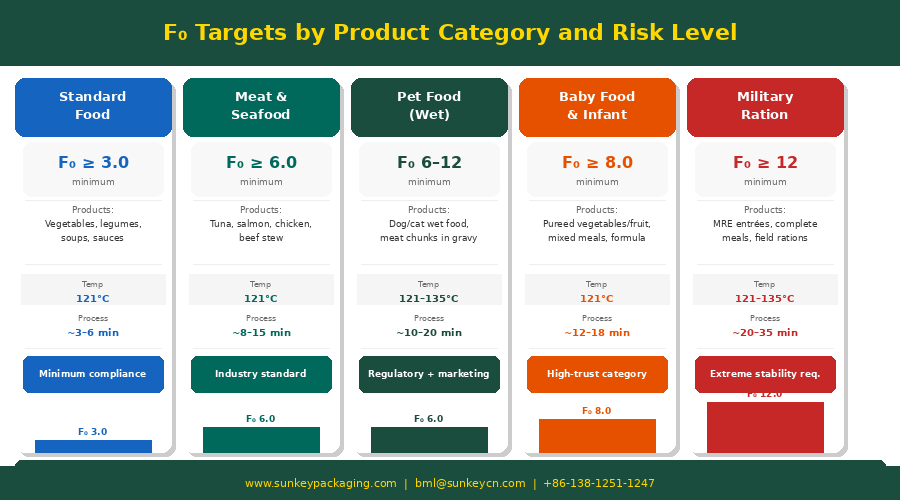

9. F₀ Targets by Application and Product Type

The FDA minimum of F₀ = 3.0 minutes is a floor, not a target. Commercial scheduled processes are designed to exceed this minimum by a significant safety margin, and the appropriate F₀ target depends on the product type, pH, water activity, and the desired conservatism of the process. Below are industry-standard F₀ targets for common retort pouch applications.

10. Six Validation Failures That Delay Launch by Months

Each of the following failures adds 4–12 weeks to the validation timeline because it requires the affected study phase to be repeated from scratch. All six are avoidable with proper planning.

Failure 1: Wrong Cold Spot Location

The most consequential error: performing HPS with the thermocouple placed at an assumed cold spot rather than the HDS-confirmed cold zone. If the TC is not at the true cold spot, the F₀ measured during HPS will be higher than what actually occurs at the coldest product location. The scheduled process will be based on inflated lethality data. This is both a food safety failure and a regulatory violation. Prevention: always complete HDS before HPS.

Failure 2: Thermocouple Calibration Drift

A thermocouple that drifts more than ±0.2°C between pre-study and post-study calibration invalidates the data collected during that study. Given the L = 10^((T−121)/10) relationship, a 1°C error at 121°C causes an 8% F₀ error — the calculated F₀ appears higher than reality. Prevention: calibrate all TCs within 24 hours before study commencement; recalibrate immediately after the final run.

Failure 3: Non-Representative Fill Weight

HPS must be conducted at the maximum commercial fill weight for the product. A heavier fill creates greater thermal mass, slower heat penetration, and lower F₀ at the cold spot. If HPS is performed at a lighter fill, the scheduled process may be inadequate for production-weight pouches. Prevention: specify fill weight tolerance in the HPS protocol; weigh every test pouch before processing.

Failure 4: Come-Up Time Excluded from F₀

Some operators mistakenly start F₀ integration only from the beginning of the hold phase, excluding lethality accumulated during come-up. While the lethality during come-up is smaller than during hold (temperatures are sub-target), it is real and must be counted. Excluding it underestimates F₀ by 0.5–2.0 minutes depending on come-up rate. This is technically conservative but can cause scheduled processes to be unnecessarily long. Prevention: integrate L from time zero through end of cooling.

Failure 5: Vent Schedule Not Validated

Air is an insulator. Any air remaining in the retort vessel during processing creates pockets where steam is excluded, dramatically reducing local heat transfer. The vent schedule — the sequence and timing of steam venting to expel air before the vessel seals for processing — must be validated as part of HDS. Using a manufacturer's default vent schedule without validation assumes the retort behaves identically to the manufacturer's test conditions. Prevention: validate vent schedule as an explicit component of HDS.

Failure 6: Incubation Protocol Error

The incubation test must be performed at 35°C ± 1°C for exactly 10 days with a minimum of 24 pouches per lot. Common errors include using an incubator without temperature verification (should be calibrated, not assumed), incubating for fewer than 10 days, or using an insufficient sample size. Any sweller detected during incubation requires immediate quarantine of the entire production run associated with that batch. Prevention: use a dedicated calibrated incubator; document temperature daily; count sample units before starting.

11. Frequently Asked Questions

Q1: What is the minimum F₀ required for retort pouches in the United States?

The minimum F₀ for commercially distributed low-acid foods in the US is 3.0 minutes, as established by 21 CFR Part 113. This represents a 12-log reduction of Clostridium botulinum spores. In practice, most commercial products target F₀ of 6–15 minutes to provide safety margin against variability in production conditions. Your Process Authority establishes the scheduled process F₀ for your specific product — do not use another manufacturer's value.

Q2: Do I need a separate process validation for each product formulation?

Yes. Each product formulation that affects heat penetration — density, viscosity, particle size, fill weight — requires its own HPS. A scheduled process established for a chicken broth product cannot be applied to a denser chicken-and-vegetable stew, even in the same pouch structure. The pouch structure (HDS, retort vessel qualification) can be shared across products processed in the same vessel; the product-specific HPS cannot.

Q3: How long does the full process validation take, and what drives the timeline?

The complete process validation timeline is 14–22 weeks. The two time-fixed elements are: (1) minimum 3 HPS runs — consecutive runs can be completed in 1–2 weeks, but fewer runs are not acceptable; and (2) the 10-day incubation test — this is a biological test and cannot be shortened or accelerated by any method. FDA filing processing time (2–4 weeks for US market) adds additional lead time that cannot be compressed.

Q4: Can I use my co-packer's validated retort vessel data for my HDS?

Yes, with conditions. If your product will be processed in the same retort vessel used for the co-packer's HDS study, in the same loading configuration, and the HDS data is current (typically within 3 years and after any significant equipment changes), you may be able to use their HDS data for your validation. This is one of the ways that working with an established co-packer or a supplier like Sunkey — who provides pre-qualified vessel data — can reduce the validation timeline. Always confirm with your Process Authority that the existing HDS data is adequate for your product.

Q5: What happens if an incubation failure occurs (a pouch swells)?

An incubation failure is the most serious outcome in process validation. Immediately upon detecting a sweller: (1) quarantine 100% of the production batch associated with that incubation lot; (2) do not distribute any product from that batch; (3) notify your Process Authority immediately; (4) initiate a full root cause investigation — thermocouple data, retort operating records, seal integrity data for the batch; (5) for previously distributed product (if any), contact FDA and initiate recall assessment. Swellers during validation are caught before distribution; swellers in post-production monitoring require the same protocol.

Q6: Does my retort pouch structure affect the F₀ calculation?

The pouch structure affects heat penetration rate, which affects F₀ accumulation profile — but it does not change the F₀ requirement. A thinner pouch (e.g., 100μm total caliper) heats faster and accumulates F₀ at the cold spot more quickly than a thicker pouch (e.g., 160μm). This means a thinner pouch may achieve the required F₀ in a shorter hold time. However, the scheduled process must be validated for the specific pouch structure used in production — changing to a different caliper or structure requires re-validation of the HPS.

Q7: Is process validation required for retort pouches in markets outside the US and EU?

Most major food-importing markets with formal food safety frameworks require equivalent process validation. Japan, Canada, Australia/New Zealand, South Korea, and most GCC markets have regulatory requirements for low-acid retort foods that are functionally equivalent to 21 CFR Part 113, requiring a scheduled process established by a qualified authority. The specific filing and documentation requirements differ by jurisdiction. Russia (GOST R standards) and China (GB standards) have separate frameworks that also require process validation documentation. Verify requirements for each target market with a local regulatory consultant.

Q8: Can I use a lower temperature and longer time to reduce the risk of overprocessing?

Yes, within limits. Temperature and time can be traded against each other, as both affect F₀. Processing at 115°C for a longer time can deliver the same F₀ as processing at 121°C for a shorter time. However, lower temperature processing places higher demands on the inner seal layer (longer time means more exposure even if the peak temperature is lower) and requires longer hold times, reducing throughput. For retort pouches specifically, the commonly used range is 115°C–135°C; below 110°C, the come-up and hold times required to achieve commercial sterility become impractical for most products.
