Seafood is among the most demanding product categories for retort packaging — combining high water activity, volatile aroma compounds, naturally occurring enzymes, and FDA-regulated pH thresholds that determine which sterilization protocol applies. Getting the material structure, F₀ target, and sealing parameters wrong does not just mean a shorter shelf life: it means a potential food safety recall. This guide covers every decision point for retort pouch selection across the major seafood categories, from canned tuna alternatives to premium salmon fillets and live-cooked shellfish.
QUICK ANSWER
Seafood retort pouches achieve 2–5 year shelf life at ambient temperature without refrigeration — replacing cans for an 8.2 billion USD global market growing at 6.8% CAGR.
Most seafood products are low-acid (pH > 4.6), requiring F₀ ≥ 3.0 minutes at 121°C under FDA 21 CFR Part 113.
Opaque PET/AL/NY/CPP is standard for maximum shelf life (3–5 years); transparent EVOH structures are used when product visibility is a commercial priority (12–24 months).
Tuna is the largest seafood retort segment globally; wet pet food seafood variants represent the fastest-growing sub-segment at 8.1% CAGR.
Critical seafood-specific risks: struvite crystal formation, sulfide odor migration, high flex crack exposure during frozen transit, and enzyme-driven quality degradation.
1. Why Seafood Is a Demanding Retort Application
1.1 pH Classification Determines the Entire Process
Under US FDA 21 CFR Part 113 and EU Regulation 2073/2005, low-acid foods (pH > 4.6 AND water activity > 0.85) require full commercial sterilization targeting Clostridium botulinum. The overwhelming majority of seafood products — tuna, salmon, shrimp, shellfish, squid — qualify as low-acid and therefore require the full retort protocol.

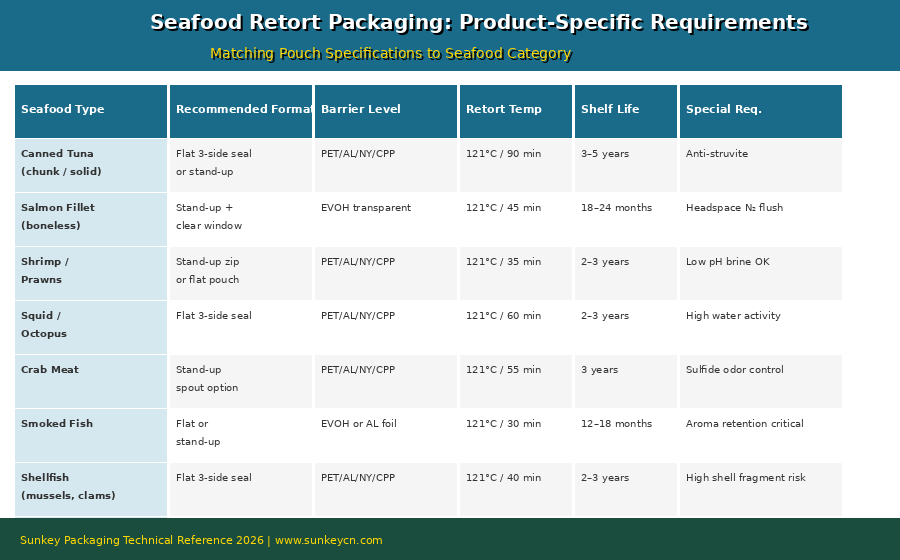

Seafood Category
Typical pH
Water Activity (aW)
Classification
F₀ Requirement
Tuna (in water/oil)
5.5–6.5
> 0.97
Low-acid
≥ 3.0 min (target 6–8)
Salmon (natural)
6.0–6.5
> 0.97
Low-acid
≥ 3.0 min (target 6–8)
Shrimp / Prawns
6.5–7.0
> 0.97
Low-acid
≥ 3.0 min (target 5–7)
Shellfish (clams, mussels)
6.0–6.8
> 0.97
Low-acid
≥ 3.0 min (target 6–8)
Fish in tomato sauce
4.2–4.8
> 0.95
Acidified (borderline)
Verify with Process Authority
Pickled herring
< 4.0
0.90–0.95
Acid food
Different process — not 21 CFR 113
1.2 Seafood-Specific Chemical Risks
Beyond standard food safety, seafood retort packaging must address three product-specific chemical risks:
•Struvite (MgNH₄PO₄) crystal formation: naturally occurring in tuna; harmless but visually alarming; opaque foil laminates are preferred for commercial tuna
•Sulfide odor compounds: shellfish release hydrogen sulfide during retort; aluminum foil provides complete barrier against secondary migration
•Protease enzyme activity: residual enzymes degrade protein texture between 40–80°C on heat ramp; thinner pouch = faster heat penetration = less texture degradation
PRO TIP: For tuna in water or brine: use opaque PET/AL/NY/CPP laminates even if your retail positioning would benefit from product visibility. Struvite crystals in transparent pouches generate disproportionate consumer complaints.

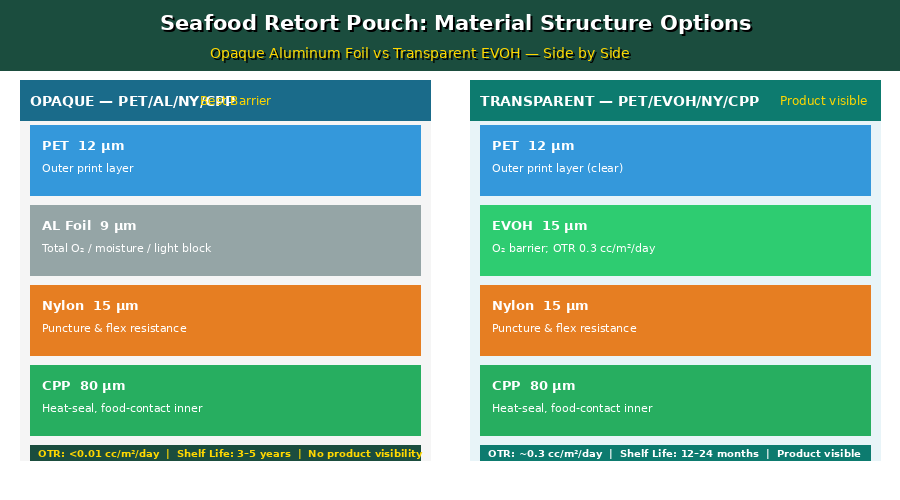

2. Material Structures for Seafood Retort Pouches
2.1 Opaque Aluminum Foil Laminate — The High-Barrier Standard
Layer
Material
Thickness
Seafood-Specific Role
Outer
Biaxially-oriented PET
12 µm
High-resolution print; abrasion resistance during case packing
Puncture resistance from bone fragments; flex crack resistance
Inner / Seal
Cast Polypropylene (CPP)
70–80 µm
Heat-sealable at 160–200°C; no flavor interaction with fish oils
2.2 Transparent EVOH Structure vs Aluminum Foil
Property
Aluminum Foil Laminate
EVOH Transparent Laminate
OTR
< 0.01 cc/m²/day
~0.3 cc/m²/day (at 0% RH)
WVTR
< 0.01 g/m²/day
~1.5–5.0 g/m²/day
Target Shelf Life
2–5 years ambient
12–24 months ambient
Product Visibility
None
Full — shows real product
Cost Premium
Baseline
+8–15% vs AL foil
Best For
Tuna, shellfish, squid
Salmon, premium shrimp, specialty
PRO TIP: EVOH barrier performance degrades significantly at high humidity. At 65% RH, EVOH OTR can rise 3–5x from its dry-state value. Always specify the post-retort OTR measured at 23°C / 65% RH for seafood applications.
Fluid fill: convection dominant, fast heat penetration

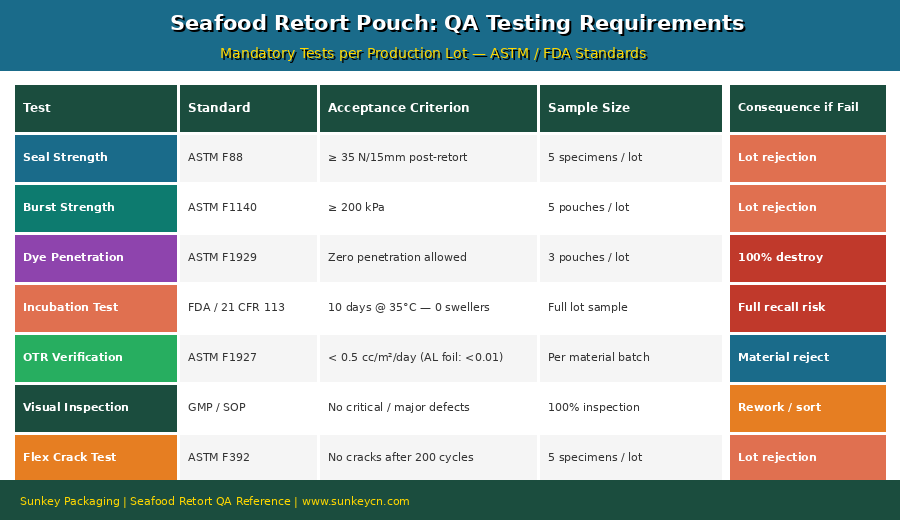

4. Quality Assurance: Mandatory Tests for Seafood Retort Pouches
Test Category
Standard
Acceptance Criterion
Frequency
Seal Strength
ASTM F88
≥ 35 N/15mm post-retort, ≥ 45 N/15mm pre-retort
5 specimens / production lot
Burst Strength
ASTM F1140
≥ 200 kPa (free restraint)
5 pouches / lot
Dye Penetration
ASTM F1929
Zero dye penetration in channel-seal area
3 pouches / lot
Incubation
FDA BAM / 21 CFR 113
0 swellers or leakers after 10 days @ 35°C
Full production lot sample
Microbial Sterility
ISO 4833 / BAM Ch. 3A
No mesophilic aerobic or anaerobic growth
Per scheduled process
Flex Crack Resistance
ASTM F392
No cracks after 200 flex cycles minimum
Per material batch
OTR Verification
ASTM F1927
Per material specification; < 0.5 cc/m²/day
Per material batch

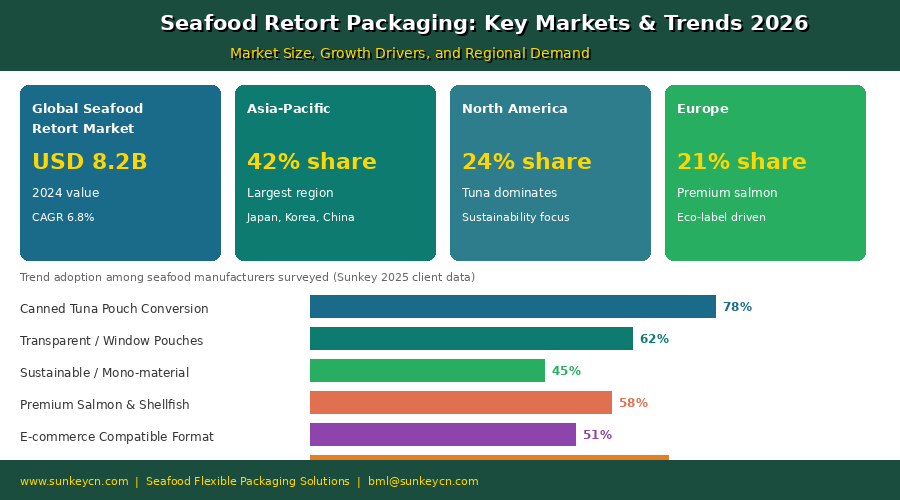

5. Market Overview: Seafood Retort Packaging in 2026
The global seafood retort pouch market was valued at approximately USD 8.2 billion in 2024, growing at 6.8% CAGR driven by:
•Can-to-pouch conversion: major tuna brands have accelerated retort pouch adoption since 2020 driven by logistics cost savings and consumer convenience
•Premium seafood expansion: transparent EVOH pouches for Atlantic salmon and specialty shellfish command 25–40% retail price premiums over equivalent canned products
•Asia-Pacific dominance: Japan, South Korea, and China collectively account for 42% of global seafood retort consumption
•Wet pet food seafood variants: fastest-growing sub-category in pet food packaging at 8.1% CAGR
6. How to Order Seafood Retort Pouches from Sunkey Packaging
Sunkey Packaging's standard process for seafood retort pouch development:
•Step 1: Product brief — seafood type, fill weight, pH (if known), target shelf life, distribution conditions
•Step 2: Specification recommendation — material structure, pouch dimensions, seal width, barrier data sheet
•Step 3: Sample production — 50–100 trial pouches with QA test reports
•Step 4: Retort trial — fill-seal-retort test at your facility; share results with your Process Authority
•Step 5: Production order — MOQ from 10,000 pouches; lead time 25–35 business days
Certifications: BRC Packaging Issue 6, FDA-registered, EU 10/2011, ISO 9001:2015.
7. Frequently Asked Questions
Q: What material structure is best for retort tuna pouches?
A: PET/AL/NY/CPP is the industry standard for tuna retort pouches. The aluminum foil layer provides OTR < 0.01 cc/m²/day — essential for 2–5 year shelf life. It also conceals struvite crystals. Transparent EVOH structures are not recommended for tuna.
Q: What F₀ value is required for retort seafood pouches?
A: Under FDA 21 CFR Part 113, minimum F₀ for commercially sterile low-acid foods is 3.0 minutes at 121°C. In practice, seafood products are processed to F₀ 5–8 minutes to build in a safety margin. Your Process Authority must determine and document the specific F₀ for your product-pouch-retorter combination.
Q: Can retort pouches replace canned tuna entirely?
A: Technically, yes. Retort pouches achieve equivalent commercial sterility to metal cans. Major brands have converted 30–50% of their SKU range to pouches since 2015. The pouch format offers 70% weight reduction and 80% storage space savings vs equivalent cans.
Q: What causes seal failure in seafood retort pouches?
A: The four most common causes: (1) fish oil or brine contamination of the seal zone during filling; (2) insufficient seal dwell time or temperature; (3) bone fragments penetrating the seal area; (4) excessive counterpressure variation during retort. A dye penetration test (ASTM F1929) is the fastest method to identify channel seals post-retort.
Q: Do I need a Process Authority for seafood retort pouch production?
A: Yes — this is a legal requirement. FDA 21 CFR Part 113 requires that all scheduled processes for low-acid canned foods be established by a qualified Process Authority. Selling commercially sterile low-acid seafood without a documented scheduled process is a federal violation in the United States.
Q: How do transparent EVOH retort pouches perform for salmon?
A: Transparent PET/EVOH/NY/CPP structures work well for salmon with 12–24 month shelf life targets. OTR ~0.3 cc/m²/day at dry conditions; rises to 0.5–1.5 cc/m²/day at high moisture levels — sufficient for 12–18 months but not 3+ years.
Q: What is the MOQ for custom seafood retort pouches from Sunkey?
A: Standard MOQ is 10,000 pouches per SKU. Trial orders from 5,000 pouches are available for standard structure sizes. Lead time is 25–35 business days from artwork approval.
Q: Can seafood retort pouches be made recyclable?
A: The standard PET/AL/NY/CPP laminate is not mechanically recyclable. Mono-material retort structures (all-PE or all-PP) can achieve commercial sterility but are limited to 12–18 months shelf life at current technology levels.
