A Definitive Resource for Infant Food Manufacturers on Materials, Regulations, QA, and Format Selection
QUICK ANSWER: Baby Food Retort Pouch Packaging
Baby food retort pouches must withstand thermal processing at 121–135°C (F0 >= 3.0 min for low-acid products) while maintaining zero migration of harmful substances to food.
Regulatory compliance: FDA 21 CFR Part 113 (USA), EU Regulation 10/2011 (Europe), and Codex STAN 074 are the three primary global standards.
Standard laminate structure: PET 12um / AL 9um / NY 15um / CPP 75um — providing complete barrier against O2, moisture, light, and microbial contamination.
Recommended formats by stage: Spout pouches for Stage 1-2 purees (70–150ml); Stand-up pouches for Stage 3 textured meals (120–300g); Flat pouches for institutional bulk.
Critical QA requirement: Incubation test (35°C / 10 days, ZERO swellers) is mandatory for every production lot — no exceptions for baby food.
Shelf life achievable: 18–24 months at ambient temperature without preservatives or refrigeration.
Table of Contents
•1. Why Baby Food Demands the Highest Packaging Standards
•2. Regulatory Framework: FDA, EU, Codex, and Beyond
•3. Material Structures for Infant Food Safety
•4. Thermal Processing Parameters for Baby Food
•5. Format Selection: Spout Pouch, Stand-Up, or Flat?
•6. Barrier Properties and Shelf Life Targets
•7. Quality Assurance: Zero-Defect Requirements
•8. How to Order Baby Food Retort Pouches from Sunkey
•9. Frequently Asked Questions
1. Why Baby Food Demands the Highest Packaging Standards
Baby food is among the most regulated food categories globally — and for good reason. The consumers are infants whose immune systems are still developing, whose gut flora is immature, and who cannot communicate distress or illness the way adults can. A packaging failure that causes contamination or premature spoilage carries consequences far more severe than in adult food categories.
Three factors make infant food packaging uniquely demanding:
•Zero tolerance for biological contamination — any pathogen survival is unacceptable. Retort processing must achieve commercial sterility, defined as the absence of viable microorganisms capable of reproducing at ambient temperatures.
•Strict chemical migration limits — packaging materials must not transfer harmful substances to food. Regulatory bodies (FDA, EFSA) set migration limits far below those for adult food packaging. Bisphenol A (BPA), phthalates, and certain printing inks are subject to specific restrictions.
•Nutritional integrity preservation — retort pouches must protect heat-sensitive vitamins (especially Vitamin C and B-complex), prevent lipid oxidation, and maintain the sensory qualities (colour, texture, aroma) that caregivers and infants expect.
Retort pouches address all three requirements through their combination of high-barrier laminate materials, hermetic heat-seal, and compatibility with validated thermal processing schedules. When properly specified and tested, they represent the safest and most efficient format for commercially sterile infant food.

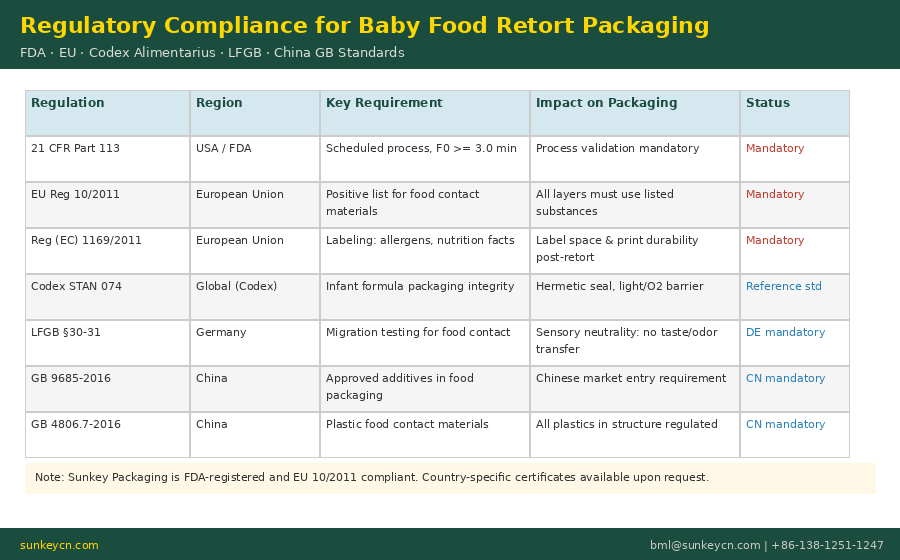

2. Regulatory Framework: FDA, EU, Codex, and Beyond
Infant food packaging is subject to multiple overlapping regulatory frameworks. Manufacturers targeting international markets must satisfy all applicable standards simultaneously — a single structure must be compliant in every target jurisdiction before any production can begin.
2.1 United States — FDA 21 CFR
In the United States, baby food in hermetically sealed containers (including retort pouches) is governed by 21 CFR Part 113 — Thermally Processed Low-Acid Foods Packaged in Hermetically Sealed Containers. Key requirements include:
•A Process Authority (IFT- or NFPA-certified) must validate the scheduled thermal process (F0 value, time, temperature) before commercial production begins.
•All food contact materials must be compliant with 21 CFR Parts 175–178 (indirect food additives — polymers, adhesives, coatings).
•FDA Facility Registration is required for manufacturers exporting to the USA. Sunkey Packaging holds active FDA registration.
2.2 European Union — EU Regulation 10/2011 and Directive 2006/52/EC
EU Regulation 10/2011 on plastic food contact materials establishes a positive list of authorised monomers, additives, and polymer production aids. For baby food packaging, additional restrictions apply: the overall migration limit (OML) is 60 mg/kg food simulant, and specific migration limits (SML) apply to over 800 individual substances. Sunkey's EU-compliant structures use only listed materials and can provide Declaration of Compliance (DoC) and supporting test reports.
2.3 Codex Alimentarius — STAN 074
Codex STAN 074 (Processed Cereal-Based Foods for Infants and Young Children) and Codex STAN 156 (Infant Formula) set global reference standards for packaging integrity: hermetic seal, light exclusion, and oxygen barrier. These standards are adopted as the basis for national regulations in over 180 countries through the WHO/FAO framework.
2.4 Additional Market-Specific Requirements
Market
Key Standard
Key Requirement
Germany
LFGB §30-31
Sensory neutrality — no taste/odor transfer from packaging to food
China
GB 9685-2016 + GB 4806.7-2016
Chinese positive list for food contact additives and plastics
Japan
JHOSPA / JHPA
Positive lists for food packaging additives and polymers
Australia/NZ
FSANZ Standard 3.2.1
Food contact materials must not adulterate food
Russia/CIS
TR CU 005/2011
Eurasian Customs Union technical regulations for packaging safety

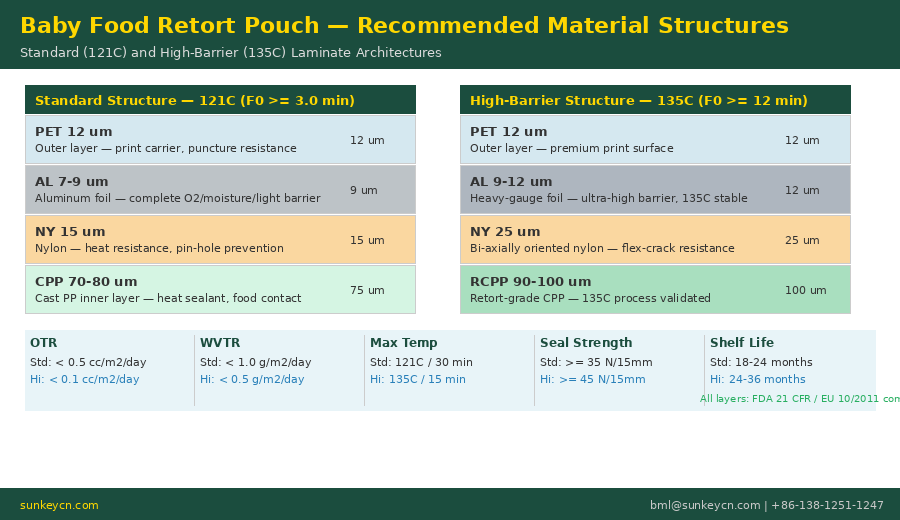

3. Material Structures for Infant Food Safety
Material selection for baby food retort pouches is more constrained than for adult food categories. Every layer in the laminate must be individually compliant with applicable food contact regulations, and the complete structure must be validated at the intended retort processing temperature.
3.1 Standard Structure — 121°C Processing (F0 ≥ 3.0 min)
For meat-containing baby food (Stage 3+), higher retort temperatures may be required by the scheduled process. In these applications, the inner sealant layer must be upgraded from CPP to RCPP (Retort-grade CPP) — a higher-crystallinity polypropylene compound with improved heat resistance up to 135°C.
•Structure: PET 12um / AL 9-12um / NY 25um / RCPP 90-100um
•Aluminum foil gauge increases to 9-12um for additional barrier performance at elevated temperatures
•Nylon thickness increases to 25um to maintain structural integrity during the more aggressive process
Some premium infant food brands require transparent packaging to show the natural colour of the product — a marketing signal of purity and ingredient transparency. For these applications, aluminum foil is replaced with a silicon oxide (SiOx) or aluminium oxide (AlOx) coated PET layer:
•Structure: PET 12um / SiOx-PET 12um / NY 15um / CPP 70um
•Limitation: SiOx coatings provide excellent O2 barrier (OTR < 1.0 cc/m²/day) but inferior moisture barrier vs. aluminium foil. Not suitable for products with water activity (Aw) > 0.85 targeting shelf life > 12 months.
All commercially sterile baby food in retort pouches must undergo a validated scheduled thermal process. The process parameters — temperature, time, and F0 value — are determined by the Process Authority based on product pH, water activity, initial microbial load, and pouch geometry.
Parameter
Low-Acid Products (pH > 4.6)
Acidified Products (pH 3.5–4.6)
Notes
Target Pathogen
Clostridium botulinum
Listeria monocytogenes / Salmonella
C. bot. is the FDA reference organism for retort validation
Minimum F0
F0 >= 3.0 min (at 121.1°C)
Not required — acidification is the kill step
F0 applies at 121.1°C reference temperature
Typical Process
121°C / 20-30 min
pH <4.6 + hot-fill or brief pasteurization
Actual parameters from Process Authority
Retort Type
Saturated steam; steam-air
HTST or tunnel pasteurizer
Batch retort most common for flexible pouches
Pouch Overpressure
Required — prevents delamination
Lower pressure needed
Without overpressure: delamination and seal failure risk
Post-Retort Cooling
Water or air cooling to <40°C
Standard cooling
Rapid cooling prevents over-processing and colour damage
Pro Tip: Processing Parameters
Pro Tip: For baby food with pH > 4.6 (e.g., vegetable purees, meat-containing meals), the Process Authority will design the schedule to exceed F0 = 3.0 min — typically targeting F0 = 5.0–8.0 min to provide an additional safety margin and to address the higher initial bioburden typical of fresh produce ingredients.
Process validation takes 14–22 weeks including heat penetration study, incubation (10 days at 35°C), and Process Authority review. This timeline cannot be compressed for baby food — regulatory bodies specifically flag accelerated validations as a compliance risk.

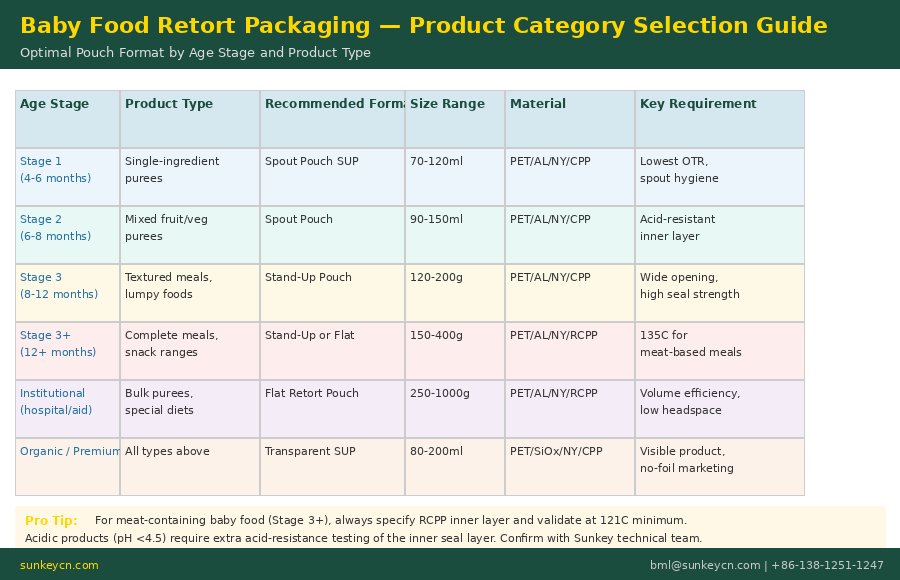

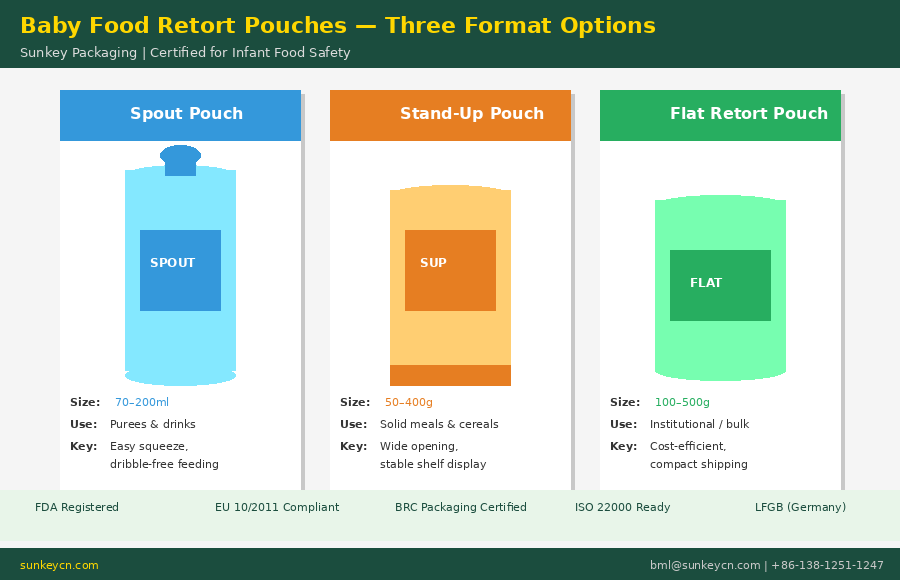

5. Format Selection: Spout Pouch, Stand-Up, or Flat?
The three primary retort pouch formats each serve different segments of the infant food market. Format selection should be driven by the product's physical properties (viscosity, particle size, fill temperature), the target age stage, and the retail channel.
Spout pouches are the dominant format in the global infant food market for pureed foods. The integrated spout allows direct feeding without utensils — a key convenience feature for on-the-go caregivers. The tamper-evident cap provides an additional safety cue at retail.
•Optimal fill range: 70–150ml for single-serving purees; up to 200ml for large-serve formats
•Spout diameter: 8mm standard (compatible with most commercial filling lines); 12mm available for products with small fruit/vegetable pieces
•Cap options: standard flip-cap (tamper-evident band), resealable screw cap, or bite-valve for toddler transition
•Key design consideration: the spout is a potential weak point for leakage during retort processing. Sunkey uses a double-weld spout seal tested to withstand 135°C processing with zero leak rate.
5.2 Stand-Up Pouches — Stage 3 (8–12 months)
As infants transition to textured foods with larger particle sizes, the spout pouch becomes impractical. Stand-up pouches (SUP) with wide zippers or peel-open tops accommodate product with lumps, grain pieces, and vegetable chunks that would block a spout.
•Optimal fill range: 120–300g for Stage 3 meal portions; up to 400g for multipack / club store formats
•Opening options: easy-tear notch with no-scissors opening; resealable zipper for partial consumption
•Stand-up base: Sunkey's four-point bottom gusset maintains stable vertical display even when partially consumed
5.3 Flat Retort Pouches — Institutional and Bulk
Flat pouches (two-ply with no gusset) are cost-efficient for institutional food service, hospital infant nutrition, and humanitarian feeding programs. They are not consumer-retail formats but dominate volume in B2B and aid organization supply chains.
•Size range: 100g to 1,000g depending on application
•Advantage: smallest footprint per gram of food content; maximally efficient shipping and storage
The shelf life of retort pouch baby food is a direct function of two factors: the thermal process (killing all viable microorganisms) and the packaging barrier (preventing re-contamination and quality degradation over the shelf period).
Property
Standard (AL foil)
Transparent (SiOx)
Target for 24-Month Shelf Life
OTR (O2 Transmission)
< 0.1 cc/m²/day at 23°C
< 0.5 cc/m²/day at 23°C
< 0.5 cc/m²/day minimum
WVTR (Moisture Transmission)
< 0.5 g/m²/day at 38°C/90%RH
< 1.5 g/m²/day at 38°C/90%RH
< 1.0 g/m²/day recommended
Light Transmission
0% (complete exclusion)
30–50% (partial, anti-UV coating possible)
0% ideal; UV-block coating for transparent
CO2 Barrier
Complete
Good (SiOx)
CO2 barrier prevents can effect in acidic products
Flavor/Aroma Barrier
Complete — AL blocks all volatiles
Partial — some aroma passage
Critical for delicate infant food flavors
A practical 24-month shelf life at ambient temperature (5–25°C) is achievable with the standard aluminum foil laminate for low-acid products (F0 ≥ 5.0 min). For acidified products, 18 months is the typical industry benchmark. These figures assume:
•Pouch headspace oxygen < 1% at time of sealing (flush-fill or vacuum-fill recommended)
•Storage conditions: avoid direct sunlight, temperatures above 35°C, and stacking pressure that could cause delamination

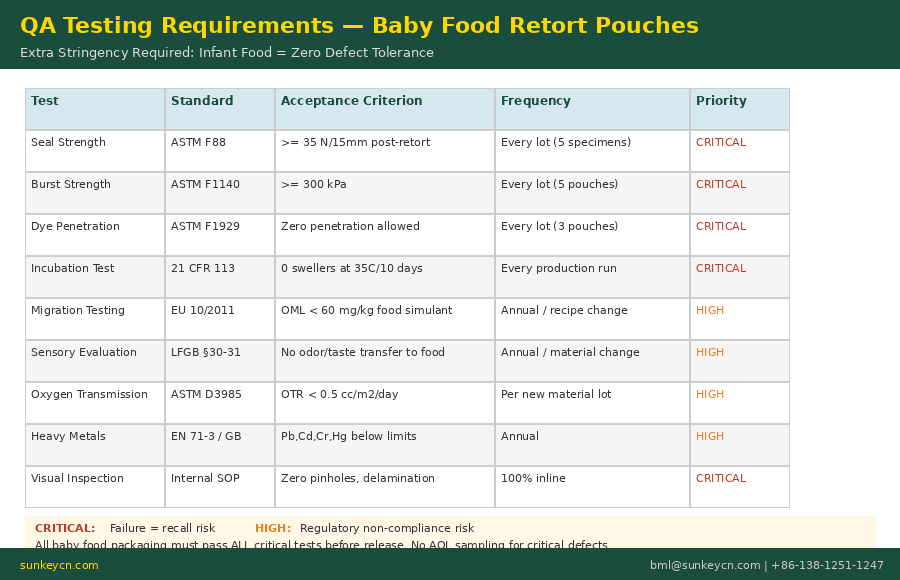

7. Quality Assurance: Zero-Defect Requirements
Baby food packaging is subject to the most stringent QA standards in the commercial food packaging industry. The fundamental principle is zero tolerance for any defect that could allow microbial contamination, chemical migration above regulatory limits, or premature spoilage. Unlike adult food categories where AQL (Acceptable Quality Level) sampling plans allow small defect percentages, baby food QA operates on a zero-defect standard for critical defects.
7.1 Pre-Shipment Testing at Sunkey
All baby food retort pouches from Sunkey Packaging undergo the following testing before shipment:
•Seal strength (ASTM F88): >= 35 N/15mm for standard; >= 45 N/15mm for high-barrier structures. Tested on 5 specimens per production lot at 300 mm/min crosshead speed.
•Burst strength (ASTM F1140): >= 300 kPa with zero failure. Tested on 5 pouches per lot at a pressurization rate of 21 kPa/s.
•Dimensional accuracy: width, height, and gusset depth within ±1.5mm of specification. Critical for compatibility with customer's filling and sealing equipment.
•Print quality: 100% visual inspection for colour registration, delamination of printed layers, and legibility of lot/date code areas.
7.2 Third-Party Migration Testing
Sunkey conducts annual migration testing through accredited third-party laboratories for all active baby food structures. Testing protocols follow EN 1186 (overall migration) and appropriate food simulants (10% ethanol for aqueous foods; 95% ethanol or vegetable oil for fatty foods; citric acid solution for acidic products). Test reports are provided with each order and updated whenever the laminate structure changes.
7.3 Customer-Side Incubation Requirement
After thermal processing at the customer's facility, 21 CFR Part 113 and HACCP best practice require incubation of finished product samples at 35°C (95°F) for a minimum of 10 days. Zero swellers (expanded pouches due to gas production by surviving microorganisms) and zero leakers are the acceptance criterion. This is a non-negotiable regulatory requirement that cannot be waived or shortened for baby food products targeting the US market.
8. How to Order Baby Food Retort Pouches from Sunkey
Sunkey Packaging has supplied retort pouch solutions to infant food manufacturers across North America, Europe, the Middle East, and Southeast Asia. Our baby food pouch program is built around three requirements that infant food brands consistently prioritize: regulatory documentation completeness, lot traceability, and consistent barrier performance across production runs.
30% deposit on order confirmation; 70% before shipment (T/T or L/C)
8.1 Documentation Package for Baby Food Buyers
Sunkey provides a complete documentation package for customers in regulated markets:
•Declaration of Compliance (EU 10/2011) — signed by Sunkey QA Manager
•Migration Test Reports — accredited third-party lab (EN 1186 + specific substances)
•Material Safety Data (MSD) — full laminate composition including adhesives
•FDA Registration Certificate — Sunkey Packaging facility number
•Process Qualification Data — retort performance records (temperature, pressure, time)
•Certificate of Analysis (CoA) — per lot, including seal strength, dimensions, OTR
9. Frequently Asked Questions
Q: What is the minimum F0 value required for baby food retort pouches?
A: For low-acid baby food (pH > 4.6) — including vegetable purees, meat meals, and mixed ingredient products — the FDA minimum F0 value is 3.0 minutes at 121.1°C (250°F). In practice, most Process Authorities specify F0 = 5.0–8.0 minutes to provide additional safety margin and account for variability in initial bioburden. The actual scheduled process is determined by a Process Authority through heat penetration studies conducted on your specific product and pouch geometry.
Q: Are Sunkey's baby food pouches BPA-free and phthalate-free?
A: Yes. All Sunkey baby food retort pouch structures are formulated without BPA, phthalate plasticizers (DEHP, DBP, BBP, DIBP), or other substances restricted under EU Directive 2011/8/EU (specific restrictions for plastic materials in contact with infant and follow-on formulae). We can provide third-party analytical reports confirming non-detection of these substances in our materials.
Q: Can I use a transparent (non-foil) structure for baby food?
A: Transparent structures using SiOx or AlOx coatings are technically feasible for some baby food applications, but they have limitations. SiOx-coated structures provide OTR < 0.5 cc/m²/day, which supports 12–15 months shelf life under optimal conditions. However, they provide no light barrier and significantly lower moisture barrier than aluminum foil laminates. For products with water activity (Aw) > 0.85 or targeted shelf life > 18 months, aluminum foil remains the recommended choice. Transparent structures are better suited for acidified products (pH < 4.6) with shorter shelf life requirements.
Q: What spout size is compatible with most baby food filling lines?
A: The industry standard spout diameter for infant food pouches is 8mm (compatible with Hünkar, Mespack, Thimonnier, and most other spout insertion and filling systems). We also offer 12mm spouts for products containing small fruit or vegetable pieces that would clog an 8mm spout. Custom spout sizes are available at higher MOQ. Please confirm the spout specifications with your filling equipment supplier before placing an order.
Q: How long does the documentation process take for a new customer?
A: For customers requiring a complete regulatory documentation package (EU DoC, migration test reports, FDA registration), the process takes 3–5 working days for existing structures with current test reports. If you require testing to a specific food simulant that we have not yet conducted, third-party testing adds 4–6 weeks. We maintain current migration test reports for all standard baby food structures and can provide them immediately upon request.
Q: What is the shelf life achievable with Sunkey's standard baby food laminate?
A: With our standard PET/AL/NY/CPP structure, an 18–24 month shelf life at ambient temperature (up to 25°C) is achievable for low-acid products processed to F0 ≥ 5.0 min. Acidified products (pH < 4.6) typically achieve 12–18 months. These figures are supported by our accelerated shelf-life study data and confirmed by customer real-time shelf-life testing. Specific shelf life claims should be validated by your Process Authority using your actual product and processing parameters.
Q: Does Sunkey supply to the European market? Are the pouches LFGB (Germany) compliant?
A: Yes, Sunkey supplies to European customers including Germany, France, the Netherlands, and the UK. All our baby food structures are formulated to be LFGB §30/31 compliant — i.e., they pass the sensory test requirements (no objectionable odor or taste transfer to food). We provide an LFGB-compliant Declaration of Compliance signed by our QA director, which is required for products sold in Germany. Contact our team for country-specific documentation requirements.
Q: Can Sunkey provide retort pouches for organic certified baby food?
A: Yes. Organic certification applies to the food product itself, not the packaging material. Retort pouches for organic baby food use exactly the same laminate structures as for conventional baby food — the key requirement is the same food safety and regulatory compliance. For brands marketing organic products in transparent packaging (to emphasize ingredient purity), we offer SiOx-coated transparent structures. Note that organic certification bodies (e.g., USDA NOP, EU Organic) do not currently restrict packaging material types, though this may evolve.
