�� Quick Answer

Flexible packaging materials are multi-layer film structures combining different polymers and barriers to protect products from oxygen, moisture, and light. The right material choice depends on your product's sensitivity and shelf-life requirements.

Key Material Categories:

• ✅ PET (Polyester) - Strength, printability, moderate O₂ barrier

• ✅ Aluminum Foil - Ultimate barrier against all elements

• ✅ PE (Polyethylene) - Sealing layer, moisture barrier, flexibility

• ✅ Nylon (PA) - Puncture resistance, oxygen barrier

• ✅ BOPP - Excellent moisture barrier, cost-effective

Most common high-barrier structure: PET/AL/PE

Table of Contents

1. Understanding Flexible Packaging Materials

2. The Three-Layer Structure

3. Outer Layer Materials

4. Barrier Layer Materials

5. Seal Layer Materials

6. Understanding OTR & WVTR

7. Common Film Structures by Application

8. Sustainable Material Options

9. How to Choose the Right Material

10. FAQ

1. Understanding Flexible Packaging Materials

Flexible packaging materials are the foundation of modern product protection. Unlike rigid containers, flexible pouches use thin film structures that can be customized layer by layer to achieve specific barrier, strength, and sealing properties.

The beauty of flexible packaging lies in its versatility—by combining different materials, manufacturers can create packaging solutions perfectly tailored to each product's unique requirements, from coffee beans that need degassing valves to pet food requiring puncture resistance.

2. The Three-Layer Structure

Most flexible packaging films consist of three functional layers, each serving a specific purpose. Understanding this structure is key to selecting the right materials for your product.

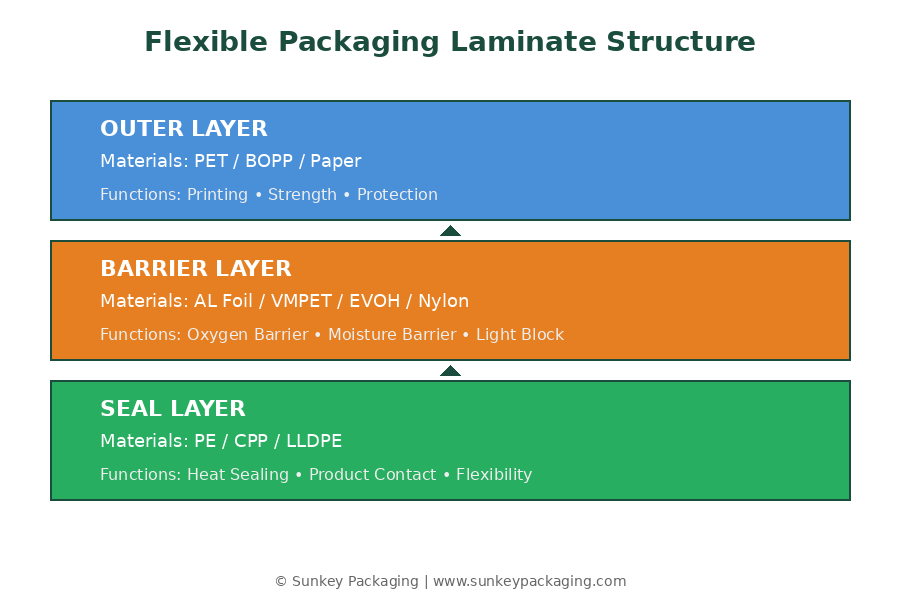

Figure 1: Three-layer laminate structure showing outer, barrier, and seal layers

3. Outer Layer Materials

The outer layer is what customers see and touch. It must provide excellent printability, structural strength, and protection for the inner layers.

3.1 PET (Polyethylene Terephthalate)

PET, also known as polyester or Mylar, is the most popular outer layer material. It offers exceptional clarity, dimensional stability during printing, and good mechanical strength. PET doesn't stretch during lamination, ensuring consistent print quality.

• Excellent printability with high gloss finish

• Good oxygen barrier (OTR: 15-30 cc/m²/24hr)

• Heat resistant up to 150°C

• FDA approved for food contact

3.2 BOPP (Biaxially Oriented Polypropylene)

BOPP offers excellent moisture barrier properties and is more cost-effective than PET. The biaxial stretching process increases stiffness, clarity, and barrier performance.

• Best moisture barrier among common films (WVTR: 2-6 g/m²/24hr)

• Lower cost than PET

• Excellent clarity and gloss

• Lower oxygen barrier than PET (OTR: 1500-2000 cc/m²/24hr)

3.3 Paper / Kraft

Paper-based outer layers provide a natural, eco-friendly appearance that resonates with consumers seeking sustainable products. Often combined with PE liner for moisture protection.

• Natural, premium aesthetic

• Excellent printability

• Requires lamination for barrier properties

• Popular for organic and specialty products

4. Barrier Layer Materials

The barrier layer is the heart of high-performance flexible packaging. It protects products from oxygen, moisture, light, and aroma transfer.

Figure 2: Barrier properties comparison - OTR and WVTR values by material

4.1 Aluminum Foil (AL)

Aluminum foil provides the ultimate barrier, completely blocking oxygen, moisture, and light. With OTR and WVTR values near zero, it's the gold standard for sensitive products like coffee, pharmaceuticals, and infant formula.

• Ultimate barrier: OTR ~0, WVTR ~0

• Complete light protection

• Dead-fold property for wrapping

• Limitations: Not transparent, higher cost, can crack when folded

4.2 Metalized PET (VMPET)

Metalized PET offers a cost-effective alternative to aluminum foil. A thin layer of aluminum is vacuum-deposited onto PET film, providing good barrier properties with a metallic appearance.

• Good barrier: OTR 0.5-2 cc/m²/24hr, WVTR 0.5-2 g/m²/24hr

• Attractive metallic appearance

• More flexible than foil

• Lower cost than pure aluminum

4.3 EVOH (Ethylene Vinyl Alcohol)

EVOH is a specialty polymer with exceptional oxygen barrier properties. It's typically co-extruded as a thin layer within other polymers, as it's sensitive to moisture.

• Excellent oxygen barrier: OTR 0.1-1 cc/m²/24hr

• Transparent - allows product visibility

• Must be protected from moisture (hygroscopic)

• Used in retort and high-barrier applications

4.4 Nylon / PA (Polyamide)

Nylon provides excellent puncture resistance and moderate oxygen barrier. It's often used in vacuum packaging and applications where mechanical strength is critical.

• Superior puncture resistance

• Good oxygen barrier: OTR 40-60 cc/m²/24hr

• Excellent for vacuum packaging

• Hygroscopic - absorbs moisture, affecting barrier

5. Seal Layer Materials

The seal layer (inner layer) is in direct contact with the product and enables heat sealing. It must be food-safe, flexible, and have an appropriate melting point for sealing equipment.

5.1 PE (Polyethylene)

PE is the most common seal layer material. Available in various densities (LDPE, LLDPE, HDPE), it offers excellent sealing properties and flexibility.

5.2 CPP (Cast Polypropylene)

CPP offers higher heat resistance than PE, making it suitable for retort applications. It provides excellent clarity and good moisture barrier.

• Higher heat resistance: up to 135°C standard, 145°C for R-CPP (retort grade)

• Excellent clarity and gloss

• Good moisture barrier

• Used in retort pouches and high-temp applications

6. Understanding OTR & WVTR

OTR (Oxygen Transmission Rate) and WVTR (Water Vapor Transmission Rate) are the two most critical measurements for evaluating barrier performance.

7. Common Film Structures by Application

Different products require different material combinations. Here are the most common structures organized by application:

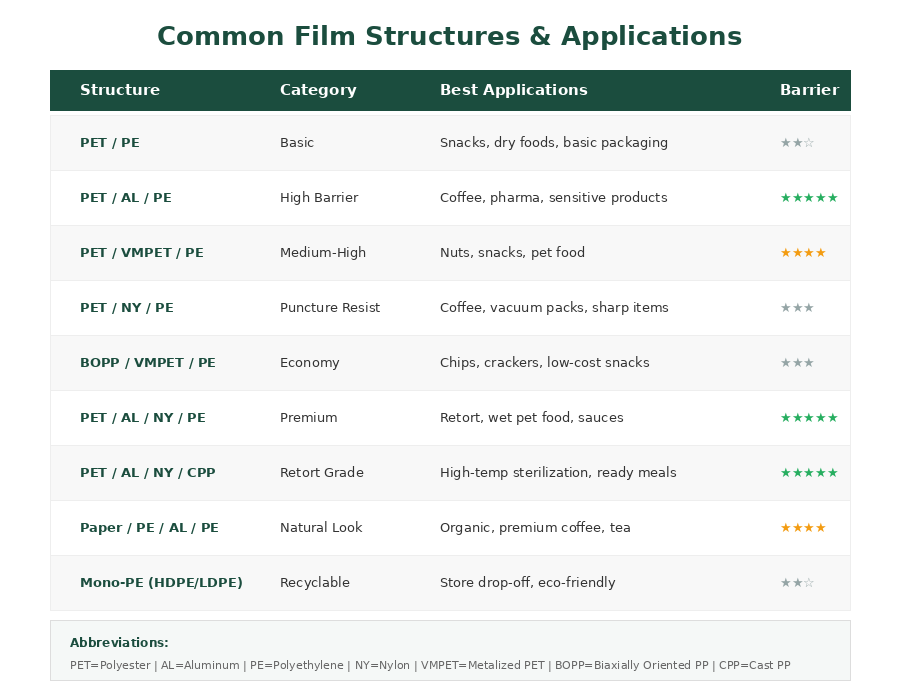

Figure 3: Common film structures matched to product applications

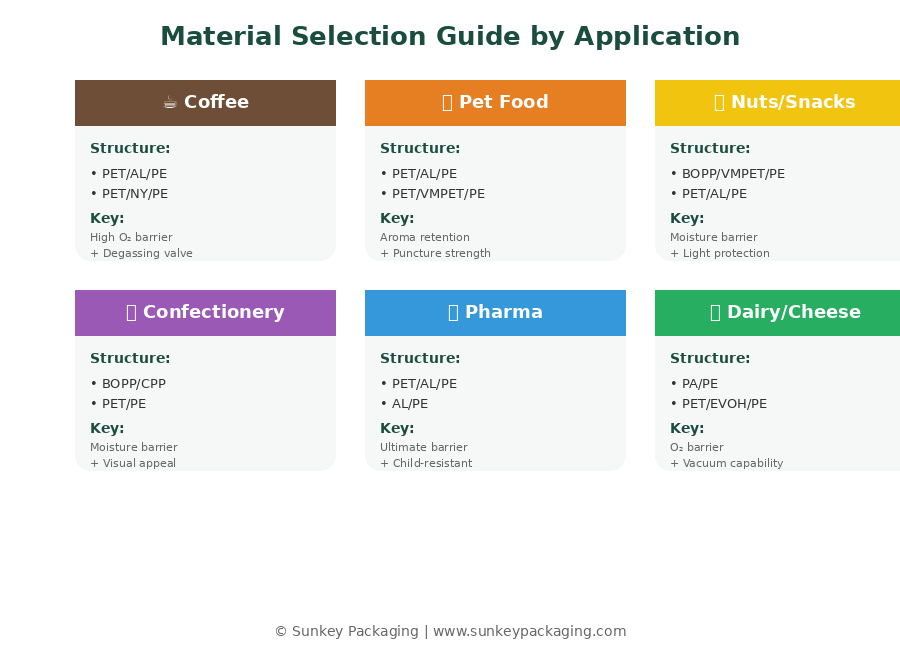

Figure 4: Quick reference guide for material selection by industry

8. Sustainable Material Options

Sustainability is increasingly important in packaging decisions. Several eco-friendly alternatives are now available that maintain product protection while reducing environmental impact.

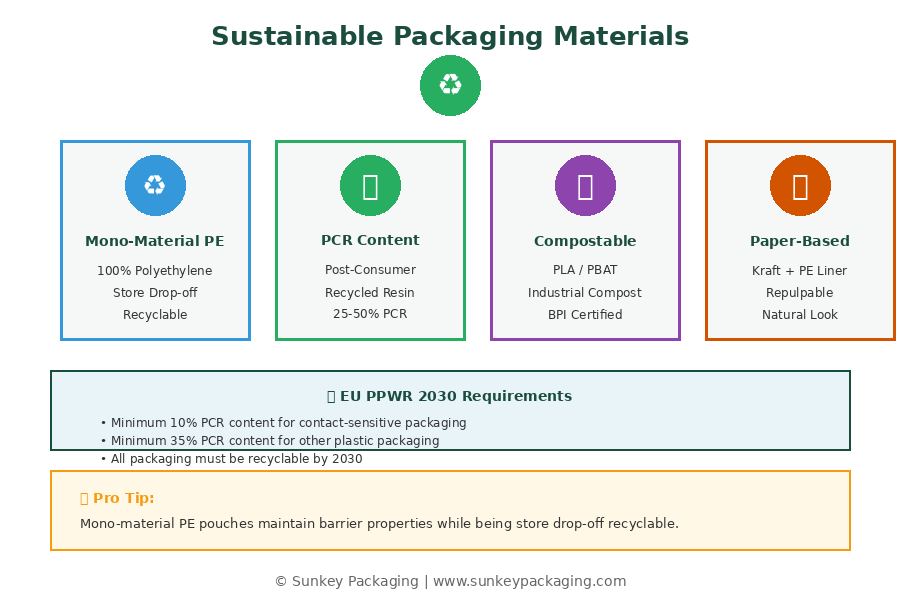

Figure 5: Sustainable material options - Mono-PE, PCR, Compostable, Paper-based

8.1 Mono-Material PE

100% polyethylene structures can be recycled through store drop-off programs. Recent advances in coating technology allow mono-PE films to achieve barrier properties approaching traditional laminates.

8.2 PCR (Post-Consumer Recycled) Content

PCR films incorporate 25-50% recycled plastic content. They offer the same performance as virgin materials while reducing reliance on new plastic production.

8.3 Compostable Materials

PLA and PBAT-based films can break down in industrial composting facilities. These materials are ideal for organic products and brands targeting environmentally conscious consumers.

9. How to Choose the Right Material

Selecting the optimal material structure requires balancing product requirements, cost considerations, and sustainability goals.

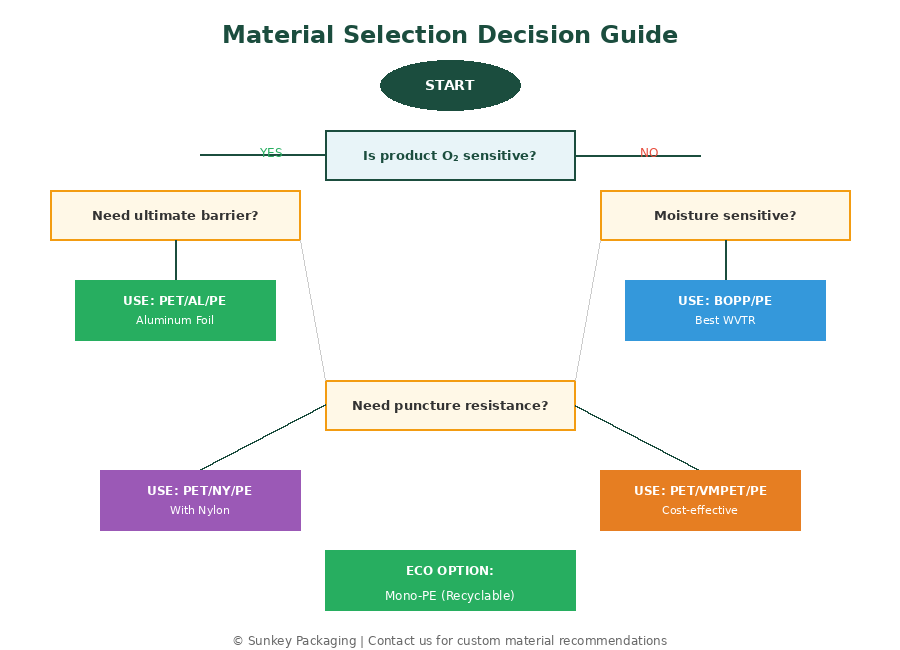

Figure 6: Decision flowchart for selecting the right material structure

Key Selection Criteria:

1. Product Sensitivity: Identify if your product is sensitive to oxygen, moisture, or light

2. Shelf Life Requirements: Longer shelf life typically requires higher barrier materials

3. Filling Process: Hot fill, retort, or ambient determines temperature resistance needs

4. Budget: Balance barrier requirements with cost constraints

5. Sustainability Goals: Consider mono-material, PCR, or compostable options

6. Visual Requirements: Transparency, metallic finish, or natural look

10. Frequently Asked Questions

Q1: What is the best material for coffee packaging?

A: PET/AL/PE is the gold standard for coffee packaging. The aluminum foil provides complete oxygen and light barrier, essential for preserving coffee freshness. Add a degassing valve to release CO₂ from freshly roasted beans.

Q2: What's the difference between VMPET and aluminum foil?

A: VMPET (metalized PET) has a thin layer of aluminum deposited on PET film, while aluminum foil is solid metal. Foil provides superior barrier (OTR ~0) but is more expensive. VMPET offers good barrier (OTR 0.5-2) at lower cost and with more flexibility.

Q3: Can flexible packaging be recycled?

A: Traditional multi-layer laminates are difficult to recycle. However, mono-material PE structures can be recycled through store drop-off programs. The industry is rapidly developing more recyclable solutions to meet upcoming regulations.

Q4: What does OTR mean and why does it matter?

A: OTR (Oxygen Transmission Rate) measures how much oxygen passes through packaging material. Lower OTR means better oxygen barrier. For oxygen-sensitive products like coffee and nuts, you need materials with OTR <1 cc/m²/24hr.

Q5: When should I use nylon in my packaging?

A: Nylon (PA) is ideal when you need puncture resistance and good oxygen barrier. Common applications include vacuum packaging, bone-in meats, sharp products, and coffee packaging where mechanical strength is important.

Q6: What's the most cost-effective high-barrier structure?

A: PET/VMPET/PE or BOPP/VMPET/PE structures offer good barrier properties at moderate cost. They're suitable for snacks, pet food, and products that don't require ultimate barrier protection.

Q7: How do I choose between PET and BOPP for the outer layer?

A: Choose PET for better oxygen barrier, heat resistance, and premium appearance. Choose BOPP for better moisture barrier and lower cost. For most snack applications, BOPP is preferred; for coffee and pharma, PET is standard.

Q8: What materials are used for retort packaging?

A: Retort pouches require materials that can withstand high-temperature sterilization (121°C+). Typical structure: PET/AL/NY/RCPP or PET/AL/RCPP. The R-CPP (retort-grade CPP) provides heat resistance, while nylon adds puncture strength.

─────────────────────────────────────────────────────────
