1. Why QA Failures Are Expensive

2. Defect Classification: Critical, Major, Minor

3. Seal Integrity Testing: 5 Essential Methods

4. In-Line vs Off-Line Quality Control

5. Seal Failure Root Cause Analysis

6. Delamination: Causes and Prevention

7. QC Sampling Plan by Production Stage

8. KPI Dashboard: Targets and Red Lines

9. Supplier QA Requirements

10. FAQ

1. Why QA Failures Are Expensive

Retort pouch quality failures are disproportionately costly compared to most other packaging formats. The reason is simple: retort pouches are used for shelf-stable food products, where a packaging failure does not merely mean a damaged package—it means a potential food safety incident.

The cost structure of a retort pouch failure is brutal: a single product recall for a 1-million-unit production lot typically costs $500,000–$2,000,000 when you account for product destruction, logistics, retailer fees, consumer communication, and regulatory response. The packaging cost of that lot was probably $150,000–200,000. The asymmetry is extreme.

Prevention through rigorous QA is not just best practice—it is the only economically rational approach. Every dollar invested in incoming material testing, in-process monitoring, and post-retort qualification prevents orders of magnitude more in potential recall costs.

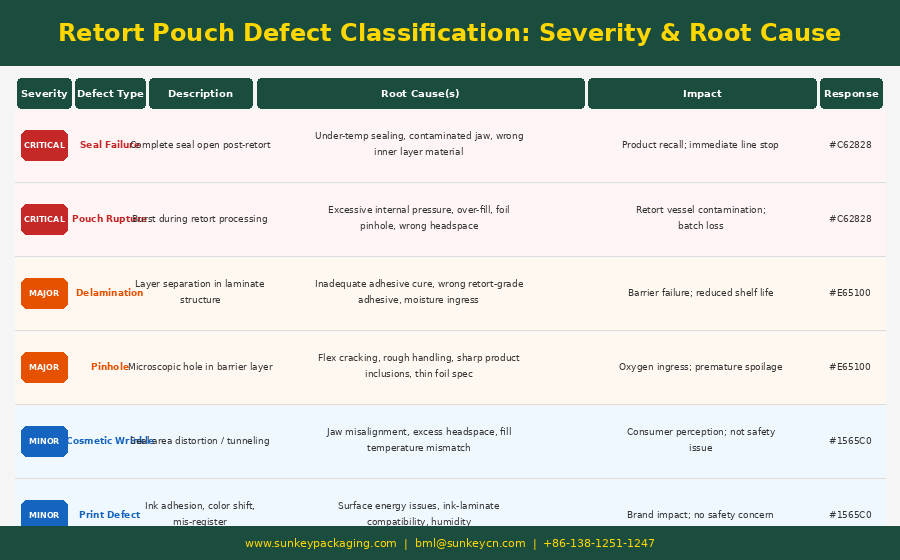

2. Defect Classification: Critical, Major, Minor

A structured defect classification system is the foundation of an effective QA program. Without clear definitions of severity, teams make inconsistent decisions about when to stop the line, quarantine batches, or escalate to management.

2.1 Critical Defects

Critical defects are defects that compromise the hermetic seal or structural integrity of the pouch. Any critical defect triggers immediate line stop, batch quarantine, and root cause investigation before production resumes. No critical defects are acceptable in commercial product.

- Seal failure: Any complete or partial seal opening detected post-retort

- Pouch rupture: Any burst during retort processing, regardless of cause

- Gross pinhole: Any visible or detectable hole in the barrier layer

2.2 Major Defects

Major defects are defects that do not immediately compromise seal integrity but represent meaningful risks to shelf life or product quality. Major defects require documented root cause analysis within 24 hours and corrective action before the next production run.

- Delamination: Any visible layer separation in the laminate structure

- Micro-pinhole: Defects detectable only by dye penetration or OTR testing

- Seal strength out-of-spec: Post-retort seal strength below 35 N/15mm but pouch still sealed

2.3 Minor Defects

Minor defects are aesthetic or cosmetic issues that do not affect food safety or shelf life. They may affect consumer perception and brand image but do not require line stop or batch quarantine. Document and trend over time to detect process drift before it becomes a major defect.

- Cosmetic seal wrinkle: Tunnel or ripple in seal area with confirmed seal integrity

- Print defect: Ink adhesion, color shift, or misregistration not covering mandatory label information

- Label placement: Minor misalignment within regulatory tolerance

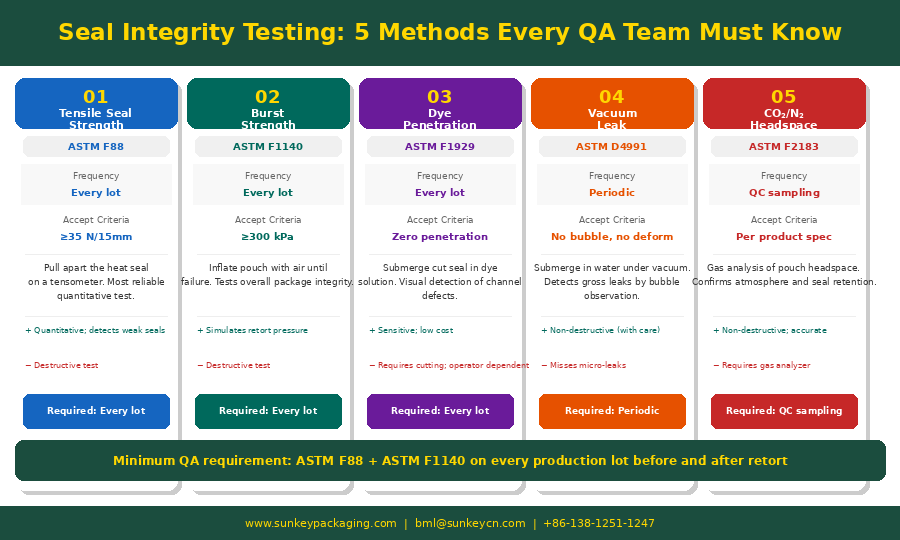

3. Seal Integrity Testing: 5 Essential Methods

Seal integrity testing is the core technical competency of retort pouch QA. Different test methods detect different failure modes, and no single test catches everything. A comprehensive QA program uses multiple complementary methods:

3.1 ASTM F88: Tensile Seal Strength — The Primary Test

ASTM F88 is the industry's primary quantitative seal strength test. Every production lot must pass ASTM F88 both before and after retort processing. Pre-retort testing confirms the seal was formed correctly during filling. Post-retort testing confirms the seal survived thermal processing without degradation.

3.2 ASTM F1140: Burst Strength

Burst strength testing pressurizes the sealed pouch with air until failure. It tests the integrity of the entire package—not just the seal—and simulates the pressure conditions the pouch experiences during retort processing. The burst location (seal versus body) is as informative as the burst pressure value:

- Burst at seal: Indicates seal weakness — investigate sealing parameters

- Burst at body: Indicates laminate weakness — investigate material specification

- No burst below 400 kPa: Indicates robust package — well within specification

3.3 ASTM F1929: Dye Penetration

Dye penetration testing is uniquely sensitive to channel defects—narrow, incomplete seal areas that may pass visual inspection but allow liquid migration. Cut the seal area from the pouch and submerge in a 1% methylene blue solution for 60 seconds. Any dye penetration through the seal area is a failure:

- Channel defect: Dye traces along a narrow path through the seal area

- Puncture defect: Dye surrounds a small hole

- Complete failure: Dye floods through the entire specimen

3.4 Vacuum Leak Test (ASTM D4991)

The vacuum leak test submerges the filled, sealed pouch in water, then applies vacuum. Air escaping from any leak point produces visible bubbles. It is a useful gross-leak detection test that can be non-destructive when applied carefully, but it misses micro-leaks that dye penetration would catch.

3.5 Headspace Gas Analysis (ASTM F2183)

For modified atmosphere or nitrogen-flushed pouches, headspace analysis quantifies the residual oxygen level inside the sealed pouch. This confirms both that the atmosphere was correctly established during filling and that no oxygen ingress has occurred. Oxygen levels rising above the target threshold indicate barrier breach or seal leak.

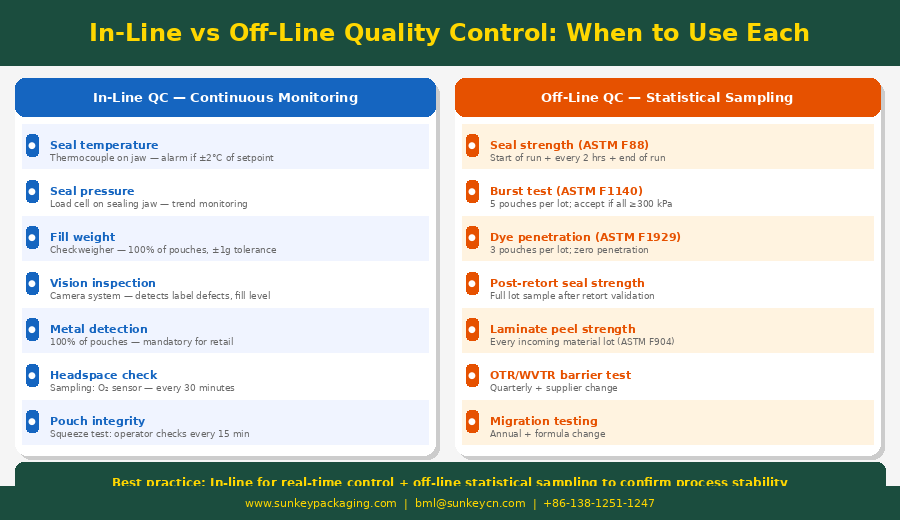

4. In-Line vs Off-Line Quality Control

Effective retort pouch QA combines two complementary control systems: continuous in-line monitoring during production, and statistical off-line sampling for quantitative confirmation.

4.1 In-Line QC: Real-Time Process Control

In-line QC catches process drift in real time, before defective product accumulates. The key in-line control points for retort pouch production are:

4.2 Off-Line QC: Statistical Confirmation

Off-line QC provides quantitative data that cannot be obtained in-line. It follows a documented sampling plan with defined lot sizes, sample sizes, and acceptance criteria. The off-line results become part of the permanent quality record for each batch:

- Minimum: 5 specimens for ASTM F88; 5 pouches for ASTM F1140; 3 pouches for ASTM F1929

- Testing must include both pre-retort and post-retort specimens

- Results must be recorded in a QMS with lot traceability

- Out-of-specification results trigger non-conformance procedure and RCA

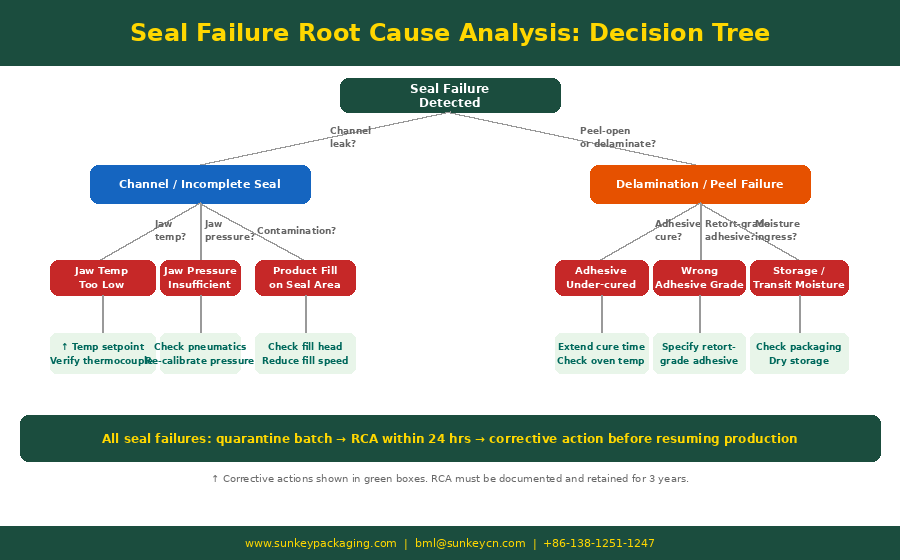

5. Seal Failure Root Cause Analysis

When a seal failure is detected, the root cause investigation must be systematic and documented. Random corrective actions without root cause analysis result in recurring failures. Use the decision tree framework below to guide RCA:

5.1 Channel Defect Root Causes

Channel defects—narrow, incomplete seal areas—are the most common seal failure mode in retort pouches. They are caused by three primary root causes:

5.2 Delamination Root Causes

Delamination—the separation of laminate layers—occurs when the adhesive bond between layers fails. This is almost always a material or process issue rather than a filling issue:

6. Delamination: Causes and Prevention

Delamination is the second most costly defect after seal failure. Unlike seal failures—which are often detectable in-process—delamination can be latent, appearing visually acceptable at production but failing after weeks of shelf aging. This makes prevention more important than detection:

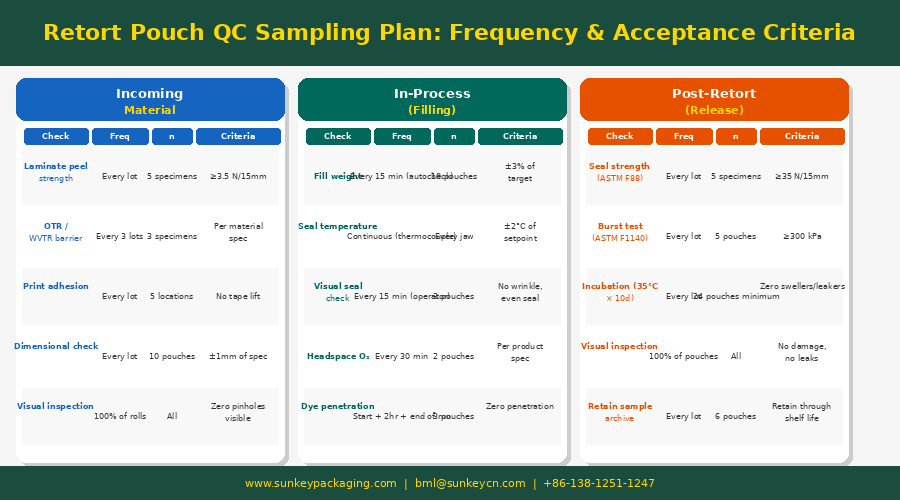

7. QC Sampling Plan by Production Stage

A complete QC sampling plan covers three production stages: incoming material inspection, in-process monitoring during filling, and post-retort release testing. All three stages are required — gaps in any stage create blind spots in the quality system:

7.1 Incoming Material Inspection

7.2 In-Process (Filling) Monitoring

7.3 Post-Retort Release Testing

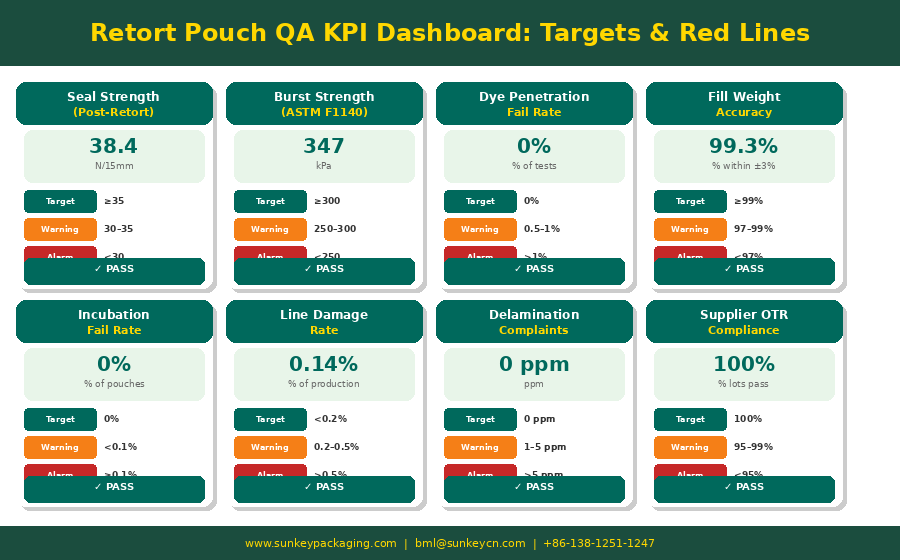

8. KPI Dashboard: Targets and Red Lines

A quantitative QA KPI dashboard enables management oversight, early warning of process drift, and objective supplier performance evaluation. Track these eight metrics as the core of your retort pouch QA program:

9. Supplier QA Requirements

Your retort pouch supplier's QA system is the first line of defense for your product quality. A supplier with weak QA generates defects that you must then detect and reject—at your cost. Setting clear supplier QA requirements in your purchase agreements reduces incoming defect rates and shifts accountability to where control resides:

10. Frequently Asked Questions

Q1: What is the most common cause of seal failure in retort pouches?

The most frequent cause is sealing jaw temperature — either too low (incomplete seal fusion) or too high (seal degradation or scorching). The second most common cause is product contamination on the seal area, where fill product lands on the seal surface during filling and prevents proper bonding. Third is jaw wear or PTFE coating degradation, which creates uneven pressure distribution across the seal width. All three are preventable with proper in-line monitoring and scheduled maintenance.

Q2: What is the minimum acceptable post-retort seal strength for retort pouches?

The industry minimum is 35 N/15mm measured by ASTM F88 (unsupported peel test at 300mm/min). This applies to the weakest seal on the pouch — typically the cross-seals on form-fill-seal pouches. For premium or demanding applications (baby food, military, medical), many manufacturers specify ≥40 N/15mm to provide additional margin. Your process should target 20–30% above the minimum specification to absorb normal production variation.

Q3: How many pouches should we test per production lot for ASTM F88?

The minimum sampling plan is 5 specimens per test, as specified in ASTM F88. For a complete lot release, test 5 specimens pre-retort and 5 specimens post-retort. Report both the mean value and the minimum individual specimen result. If any individual specimen falls below 35 N/15mm post-retort, the entire lot is suspect and requires investigation before release. Higher-volume or higher-risk productions should use larger sample sizes (10–20 specimens) for greater statistical confidence.

Q4: Can delamination occur without visible signs at the time of production?

Yes — latent delamination is the most dangerous form. The laminate may appear visually intact at production but fail during shelf aging as the adhesive bond continues to weaken. This is why post-retort peel strength testing is required even when pouches look acceptable. Any post-retort peel strength below 3.5 N/15mm should be treated as a delamination risk regardless of visual appearance. Accelerated aging studies (60°C × 7 days) help screen for latent delamination before commercial production.

Q5: What should we do if we find swellers during incubation testing?

A sweller during incubation indicates microbial growth inside the sealed pouch — the most serious QA finding possible for a shelf-stable food product. Immediate actions: (1) Quarantine 100% of the production batch, (2) Notify your Process Authority and regulatory authority, (3) Do not release any product from the suspect batch, (4) Conduct full microbiological investigation of the sweller, (5) Review the retort process records to confirm the scheduled process was followed. Releasing product from a batch with confirmed incubation failures is a serious regulatory violation.

Q6: How long should we retain post-retort samples?

Retain a minimum of 6 pouches per lot through the full shelf life of the product plus 6 months. For a product with 24-month shelf life, retain samples for 30 months from production date. Store retain samples at ambient conditions (20–25°C) in a dedicated, labeled retention room. Retain samples serve as reference material for any consumer complaint investigations and regulatory inquiries after commercial release.

Q7: At what rate does retort processing degrade seal strength?

A typical reduction in seal strength post-retort is 15–30% compared to pre-retort values, depending on the retort temperature, time, and pouch material. A pouch with 55 N/15mm pre-retort seal strength would typically test at 40–47 N/15mm post-retort — well above the 35 N/15mm minimum. If post-retort degradation exceeds 35%, investigate the inner layer specification (CPP vs RCPP) and sealing temperature settings, as this level of degradation indicates material or process misalignment.

Q8: We receive pre-qualification test data from our supplier. Do we still need to test incoming lots ourselves?

Yes. Supplier pre-qualification data confirms that their process is capable of producing material to specification — but it is not a substitute for lot-specific incoming inspection. Pre-qualification data reduces the scope of your incoming testing (you may not need to test every parameter every lot), but at minimum, ASTM F904 peel strength and a visual inspection should be conducted on every incoming lot. Independent quarterly OTR testing provides verification that supplier CoA data accurately represents what you are receiving.
