What Is a Retort Pouch and Why It's Revolutionizing Food Packaging

Retort pouches represent one of the most significant innovations in flexible plastic packaging over the past several decades. These high-performance pouches are specifically engineered to withstand the rigorous thermal processing required for food sterilization while maintaining structural integrity and product protection. Unlike conventional packaging solutions, retort pouches combine the convenience of flexible packaging with the shelf-stability traditionally associated with metal cans.

The term "retort" refers to the pressurized cooking vessel used in the sterilization process, where temperatures typically reach 121°C (250°F) under pressure. This demanding environment requires specialized materials and construction techniques that distinguish retort pouches from standard flexible packaging options.

The Evolution of Retort Pouch Technology in Modern Food Processing

The development of retort pouch technology marks a significant milestone in food preservation history. Originally developed for military rations to replace heavy metal cans, these pouches have evolved into sophisticated packaging solutions adopted across multiple industries. The technology has progressed from basic laminated structures to complex engineered materials that offer superior barrier properties, puncture resistance, and thermal stability.

Today's retort pouches incorporate advanced polymers and barrier materials that can withstand not only the intense heat of retorting but also provide protection against oxygen, moisture, light, and microbial contamination—all critical factors in preserving food quality and extending shelf life without refrigeration.

Material Composition: The Multi-Layer Engineering Behind Retort Pouches

Essential Layer Structure of Modern Retort Pouches

The exceptional performance of retort pouches stems from their sophisticated multi-layer construction. A typical retort pouch consists of four primary functional layers, each serving a specific purpose:

1. Outer Layer (PET/Nylon): Provides puncture resistance, printability, and overall structural integrity

2. Barrier Layer (Aluminum foil or metallized film/EVOH): Blocks oxygen, light, and moisture transmission

3. Strength Layer (Nylon/PET): Offers dimensional stability during the retort process

4. Food Contact Layer (Polypropylene/Cast Polypropylene): Ensures product safety, heat-sealability, and chemical compatibility

This engineered approach to material selection allows manufacturers to customize pouches for specific product requirements, processing conditions, and shelf-life targets.

Barrier Properties: The Science Behind Extended Shelf-Life

The exceptional shelf-stability of products packaged in retort pouches—typically 12-24 months without refrigeration—is primarily attributable to their superior barrier properties. These barriers are quantified through standardized testing methods:

Barrier Property	Testing Standard	Typical Retort Pouch Performance	Industry Benchmark
Oxygen Transmission Rate	ASTM D3985	<0.1 cc/m²/day	<1.0 cc/m²/day
Water Vapor Transmission	ASTM F1249	<0.5 g/m²/day	<2.0 g/m²/day
Light Transmission	ASTM D1003	<0.01% (with aluminum)	Variable
Heat Resistance	Internal testing	Maintains integrity at 121°C under pressure	N/A

These exceptional barrier properties are achieved through material selection and manufacturing processes that create an integrated protective system for the packaged product.

Manufacturing Process: From Raw Materials to Finished Pouches

Lamination Techniques for High-Performance Retort Structures

The manufacturing of retort pouches involves specialized equipment and precise process controls. The primary manufacturing stages include:

1. Film Extrusion: Base polymers are melted and formed into thin films

2. Printing: High-resolution graphics are applied to the outer layer using gravure or flexographic printing

3. Lamination: Multiple layers are bonded using adhesive or extrusion lamination

4. Pouch Formation: Laminated materials are cut, folded, and sealed to create the final pouch structure

5. Quality Testing: Finished pouches undergo rigorous testing for seal integrity, barrier performance, and thermal resistance

Each step is carefully controlled to ensure the final product meets stringent performance requirements for food safety and preservation.

Critical Quality Parameters in Retort Pouch Production

The manufacturing quality of retort pouches is assessed through multiple quality control checkpoints:

· Seal Strength Testing: Minimum 3.0 kg/15mm per ASTM F88

· Burst Testing: Minimum 50 psi resistance per ASTM F1140

· Tensile Strength: Minimum 15 N/mm² in both machine and transverse directions

· Delamination Resistance: No separation after 30 minutes at 131°C

These parameters ensure the pouches can withstand the retort process and subsequent handling without compromising product protection.

Retort Processing Methods: Ensuring Food Safety and Quality

Thermal Processing Fundamentals for Shelf-Stable Foods

The retort sterilization process is critical to achieving commercial sterility and ensuring food safety. This process involves several carefully controlled stages:

1. Pre-heating: Gradual temperature increase to minimize thermal shock

2. Sterilization: Holding at 121°C (250°F) for a calculated F₀ value (typically 6-12 minutes)

3. Cooling: Controlled temperature reduction to prevent package deformation

4. Post-process handling: Careful management to prevent recontamination

The processing parameters are determined based on product characteristics, microbial risk assessment, and quality considerations. Validation studies establish the minimum required thermal treatment to achieve a 12-log reduction of Clostridium botulinum spores—the industry standard for shelf-stable foods.

Show Image Industrial retort system with precise temperature and pressure controls for optimal sterilization while preserving product quality

Balancing Sterilization and Product Quality

One of the key challenges in retort processing is achieving the required lethality (F₀) while minimizing quality degradation. Modern retort systems employ various technologies to optimize this balance:

· Steam/Air retorts: Provide uniform heat distribution and pressure control

· Water spray retorts: Offer faster heating and cooling rates

· Shaka retorts: Utilize agitation to improve heat transfer efficiency

· Microwave-assisted retorts: Reduce thermal exposure time

The selection of appropriate retort technology depends on product characteristics, package geometry, and quality objectives. Advanced process control systems monitor and adjust conditions in real-time to ensure both safety and quality targets are met.

Applications Across Industries: Beyond Traditional Food Packaging

Food Industry Applications and Success Stories

Retort pouches have transformed numerous food categories by enabling ambient storage of products that traditionally required refrigeration or freezing:

· Ready-to-eat meals: Complete shelf-stable entrees with fresh-like quality

· Sauces and condiments: Preservative-free formulations with extended shelf life

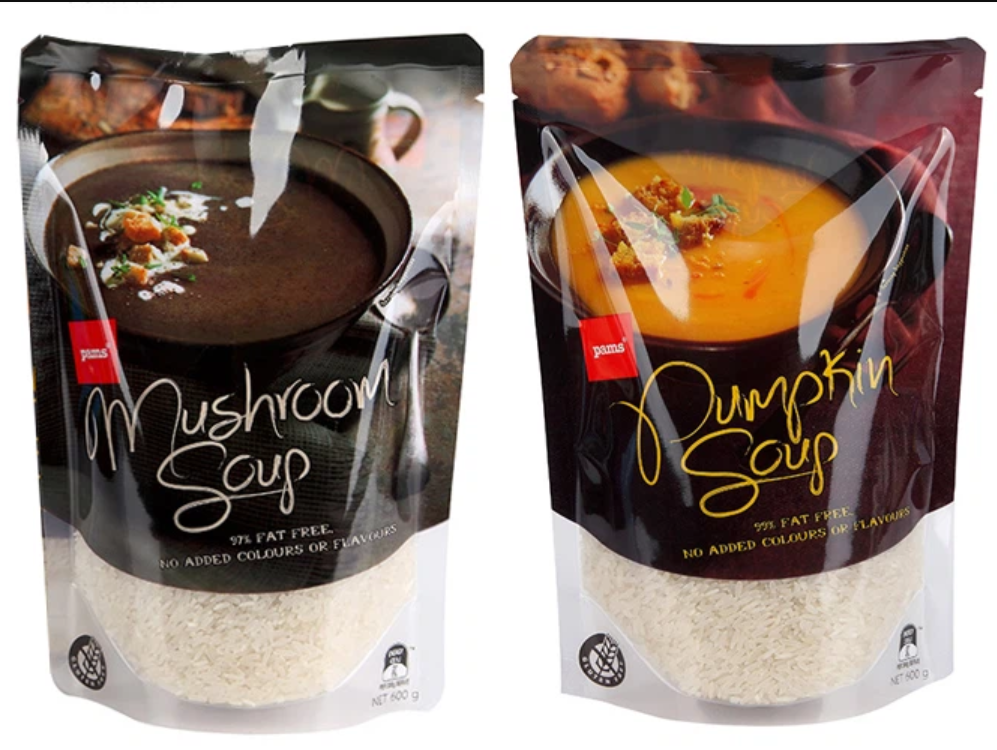

· Soups and broths: Convenient alternatives to canned products

· Seafood and meat products: Premium preservation with improved texture and flavor

· Baby food: Nutritious, preservative-free options with extended shelf stability

Case Study: A leading Asian food manufacturer transitioned from cans to retort pouches for their curry products, resulting in 30% weight reduction, 15% cost savings in transportation, and a measurable improvement in flavor profile due to shorter thermal treatment times.

Expanding into Pharmaceutical and Medical Applications

The exceptional barrier properties and sterility assurance of retort pouches have led to adoption in non-food applications:

· Parenteral solutions: Long-term storage of medical fluids

· Diagnostic kits: Protection of sensitive reagents

· Wound care products: Maintenance of sterility for extended periods

· Veterinary products: Shelf-stable medications and nutritional supplements

These applications leverage the same fundamental technology while adapting material selection and processing parameters to meet specific regulatory requirements and performance needs.

Sustainability Considerations in Retort Pouch Design

Environmental Impact Assessment and Improvement Strategies

As sustainability becomes increasingly important in packaging decisions, retort pouch manufacturers are implementing various strategies to improve the environmental profile:

· Material reduction: Optimizing layer thickness while maintaining performance

· Recyclable structures: Developing mono-material alternatives to traditional multi-material laminates

· Renewable content: Incorporating bio-based polymers where technically feasible

· Life cycle assessment: Comprehensive evaluation of environmental impacts from raw material extraction through end-of-life

Recent innovations include recyclable PP-based structures that maintain adequate oxygen and moisture barriers while allowing for inclusion in existing polyolefin recycling streams.

Comparative Life Cycle Analysis: Retort Pouches vs. Traditional Packaging

When compared to alternative packaging formats for shelf-stable foods, retort pouches often demonstrate environmental advantages:

Environmental Impact Category	Retort Pouch	Metal Can	Glass Jar
Material Weight per Package	15-25g	50-80g	100-200g
Transportation Energy (relative)	1.0	2.8	4.2
Production Energy (MJ/kg packaging)	80-95	160-180	12-25
End-of-Life Recycling Rate (2023 data)	10-35%	60-75%	40-60%
CO₂ Equivalent (kg/1000 units)	40-60	120-140	160-180

While retort pouches currently face challenges in recyclability, their overall resource efficiency and reduced transportation impacts contribute to a favorable environmental profile in many applications. Industry initiatives are actively addressing end-of-life considerations through design for recyclability and recycling infrastructure development.

How to Select the Right Retort Pouch for Your Product

Critical Evaluation Criteria for Packaging Engineers

Selecting the optimal retort pouch specification requires consideration of multiple factors:

1. Product Characteristics:

pH level and acidity

Fat content and potential for oxidation

Moisture sensitivity

Nutritional component stability

2. Processing Requirements:

Maximum retort temperature

Target F₀ value

Cooling method and rate

Post-process handling conditions

3. Distribution Environment:

Temperature extremes

Humidity variations

Altitude changes (affecting internal pressure)

Physical handling and abrasion risks

4. Shelf-Life Objectives:

Target storage duration

Storage conditions (ambient, tropical, etc.)

Quality retention requirements

5. Marketing and Consumer Considerations:

Transparency needs

Printing requirements

Convenience features (easy-open, reclosability)

Sustainability messaging

These factors guide the specification development process, ensuring the selected packaging solution meets both technical and commercial objectives.

Material Selection Guide for Common Applications

Product Category	Recommended Structure	Key Performance Attributes	Special Considerations
Acidic Foods (pH<4.6)	PET/Foil/CPP	High acid resistance, moderate oxygen barrier	Aluminum corrosion protection
Low-Acid Foods	PET/SiOx/Nylon/CPP	Maximum oxygen barrier, puncture resistance	Higher temperature resistance
Fatty Products	PET/AlOx/Nylon/CPP	Light barrier, oxygen barrier	Minimal scalping characteristics
Particulate Products	PET/Nylon/EVOH/PP	Excellent puncture resistance, moderate barrier	Higher burst strength requirements
Ready Meals	PET/Nylon/EVOH/PP	Heat resistance, good printability	Often requires shaped or compartmented designs

Material selection should be validated through accelerated shelf-life testing and processing trials to ensure performance meets specific product requirements.

Future Trends: Innovation in Retort Pouch Technology

Advanced Materials and Smart Packaging Integration

The retort pouch industry continues to evolve with several emerging technologies:

· Nanotechnology-enhanced barriers: Clay nanoparticles and nanocomposites providing superior barrier properties with reduced material thickness

· Active packaging systems: Oxygen scavengers and moisture regulators integrated into pouch structures

· Antimicrobial films: Surface treatments that inhibit microbial growth and extend shelf-life

· Bio-based barrier materials: Renewable alternatives to petroleum-based polymers with comparable performance

· Smart indicators: Time-temperature indicators and freshness monitors providing visual feedback on product condition

These innovations are expanding the capabilities of retort pouches while addressing sustainability challenges and consumer demands for transparency.

Digital Manufacturing and Industry 4.0 Impact

Advanced manufacturing technologies are transforming retort pouch production:

· Digital printing: Enabling shorter runs, personalization, and rapid design changes

· In-line quality monitoring: 100% inspection systems for critical parameters like seal integrity

· Predictive maintenance: IoT-enabled equipment reducing downtime and quality variations

· Automated material handling: Reducing contamination risks and improving consistency

· Digital twins: Virtual process models optimizing production parameters in real-time

These technologies improve manufacturing efficiency while enhancing quality assurance capabilities, particularly important for high-reliability applications like food and medical packaging.

Common Challenges and Troubleshooting Guide

Processing Problems and Solutions

Problem	Potential Causes	Recommended Solutions
Seal Failure	Contamination in seal area<br>Incorrect sealing parameters<br>Material incompatibility	Implement clean room conditions for filling<br>Validate sealing parameters for each material<br>Conduct material compatibility testing
Delamination	Inadequate adhesive curing<br>Incompatible adhesive system<br>Excessive retort temperature	Extend curing time before processing<br>Select retort-grade adhesives<br>Optimize retort profile for minimal thermal stress
Pinholing	Material damage during handling<br>Sharp product components<br>Air entrapment during retort	Implement gentle handling procedures<br>Use reinforced structures for abrasive products<br>Improve air removal during initial heating
Color/Print Fading	Incompatible inks<br>Excessive retort temperature<br>Poor adhesion to substrate	Use high-temperature resistant inks<br>Optimize retort profile<br>Select appropriate primers for substrate
Product Discoloration	Light exposure (transparent pouches)<br>Metal interaction (aluminum pouches)<br>Excessive thermal exposure	Use light barrier materials<br>Add protective coating on food-contact layer<br>Optimize thermal process F₀ values

Effective troubleshooting requires systematic analysis and often involves multidisciplinary expertise across material science, food technology, and process engineering.

Quality Assurance Protocols and Testing Methods

A comprehensive quality assurance program for retort pouches includes:

1. Incoming Materials Testing:

Material thickness and basis weight

Tensile and tear strength

Coefficient of friction

Printability assessment

2. In-Process Controls:

Lamination bond strength

Residual solvent levels

Registration accuracy

Seal parameters monitoring

3. Finished Pouch Testing:

Burst and seal strength

Barrier properties verification

Dimensional accuracy

Visual inspection for defects

4. Post-Processing Validation:

Package integrity after retort

Headspace gas analysis

Accelerated aging tests

Distribution simulation testing

These protocols ensure consistent quality and provide documented evidence of compliance with food safety and regulatory requirements.

Regulatory Compliance and Food Safety Considerations

Global Standards and Certification Requirements

Retort pouches for food applications must comply with various regulatory frameworks:

· FDA (US): 21 CFR 177.1390 for laminated structures, 21 CFR 174-186 for food contact substances

· EU: Regulation (EC) No 1935/2004 framework regulation, (EU) No 10/2011 for plastic materials

· China: GB 9683-2008 for plastic food packaging

· Japan: MHLW Notification No. 370 for food contact materials

Compliance requires extensive documentation, including:

· Material specifications and formulations

· Migration testing results

· Processing validation studies

· Quality control procedures

· Traceability systems

Manufacturers typically maintain Food Safety Management Systems certified to standards like FSSC 22000 or BRC Packaging to demonstrate comprehensive control of food safety risks.

Migration Testing and Food Contact Safety Assurance

The safety of retort pouches for food contact is verified through migration testing, which evaluates the potential transfer of substances from packaging to food. Key testing parameters include:

· Overall migration limit: Typically 10 mg/dm² in EU regulations

· Specific migration limits: For individual substances based on toxicological evaluations

· Food simulants: Selected based on food type (aqueous, acidic, alcoholic, fatty)

· Test conditions: Time and temperature parameters that simulate worst-case use conditions

For retort applications, testing typically employs elevated temperatures (121°C) and extended contact times to account for the thermal processing and subsequent storage. Manufacturers must demonstrate compliance through testing performed by accredited laboratories following standardized methods.

Cost-Benefit Analysis: Making the Business Case for Retort Pouches

Economic Comparison with Alternative Packaging Systems

Converting from traditional packaging formats to retort pouches often delivers significant economic benefits across the value chain:

Cost Factor	Retort Pouch	Metal Can	Glass Jar	Plastic Tray
Raw Material Cost (relative)	1.0	1.4	1.2	1.3
Production Energy Cost	Low	High	Very High	Medium
Transportation Cost per Unit Product	Very Low	High	Very High	Medium
Warehouse Space Requirements	Minimal	Substantial	Substantial	Moderate
End-of-Life Management Cost	Moderate	Low	Low	Moderate
Total System Cost	Lowest	High	Highest	Moderate

These economic advantages must be balanced against initial investment requirements for filling and retorting equipment, which can be substantial when converting from other packaging systems.

ROI Calculator: Transition Planning from Traditional Packaging

When evaluating the transition to retort pouches, companies should consider the following ROI factors:

1. Capital Investment:

Filling and sealing equipment

Retort system modifications or replacements

Quality control equipment updates

2. Operational Savings:

Reduced packaging material costs (typically 15-30%)

Lower transportation costs (typically 20-50%)

Reduced warehouse space requirements (typically 30-60%)

Energy savings in production (typically 10-25%)

3. Market Advantages:

Premium positioning opportunities

Retail shelf space efficiency

Consumer convenience benefits

Sustainability marketing potential

Case studies indicate ROI periods ranging from 18-36 months for medium-scale operations, with shorter payback periods for high-volume applications or when replacing end-of-life equipment.

Practical Guide: Implementing Retort Pouch Technology in Your Operation

Equipment Selection and Process Integration

Implementing retort pouch technology requires careful planning and equipment selection:

1. Filling and Sealing Systems:

Vertical form-fill-seal for liquid products

Pre-made pouch systems for particulate products

Semi-automatic systems for small-scale operations

Fully automated lines for high-volume production

2. Retort Systems:

Batch retorts for flexible production schedules

Continuous retorts for high-volume operations

Specialized systems for shaped or standing pouches

Hybrid systems with multiple processing capabilities

3. Auxiliary Equipment:

Pouch handling systems

Inspection systems (visual, seal integrity)

Secondary packaging equipment

Quality control testing equipment

Integration with existing manufacturing operations requires careful planning of workflow, utility requirements, and personnel training to ensure efficient implementation.

Staff Training and Quality Management Implementation

The transition to retort pouch technology requires comprehensive staff development:

1. Technical Training Areas:

Material handling procedures

Equipment operation and maintenance

Critical process parameter monitoring

Troubleshooting methodologies

2. Quality Assurance Training:

Inspection procedures

Testing methods and interpretation

Documentation requirements

Corrective action processes

3. Food Safety Training:

HACCP principles and implementation

Critical control point monitoring

Deviation management

Validation and verification procedures

Successful implementation typically involves a phased approach, beginning with technical trials and small production runs before scaling to full production volumes.

Conclusion: Becoming a Master of Retort Pouch Technology

Key Takeaways for Packaging Professionals

Mastering retort pouch technology requires understanding the complex interplay between materials, processing methods, product characteristics, and quality assurance. Key principles include:

1. Material selection based on comprehensive product requirements analysis

2. Process validation ensuring both food safety and quality objectives

3. Quality assurance throughout the supply chain

4. Continuous improvement through data-driven decision making

5. Staying informed of technological advancements and regulatory developments

These principles provide a foundation for successful implementation and optimization of retort pouch technology across diverse applications.

Resources for Continuing Education and Support

To further develop expertise in retort pouch technology, consider these professional resources:

· Industry Associations:

Flexible Packaging Association (FPA)

SAVE FOOD Initiative

Institute of Packaging Professionals (IoPP)

· Technical Standards Organizations:

ASTM International (Committee F02 on Flexible Barrier Packaging)

ISO Technical Committee 122/SC 5 (Transport Packaging)

· Academic Resources:

Michigan State University School of Packaging

Rutgers Food Innovation Center

Fraunhofer Institute for Process Engineering and Packaging

· Technical Conferences:

PACK EXPO International

Interpack

Global Pouch Forum

Continuous learning and networking within the packaging community are essential for staying at the forefront of this dynamic technology.

Frequently Asked Questions About Retort Pouches

Technical FAQs for Packaging Engineers

Q: How does the retort process affect barrier properties of packaging materials?

A: The high temperature and pressure conditions during retorting can affect barrier properties through several mechanisms. Polymer crystallinity may increase, potentially improving oxygen barriers but reducing flexibility. Adhesive bonds between layers may be stressed, potentially creating microchannel formation. Modern retort-grade materials are specifically engineered to minimize these effects through heat-stabilized polymers and specialized adhesive systems that maintain structural integrity during and after thermal processing.

Q: What are the key differences between retort pouches for acid and low-acid foods?

A: Retort pouches for low-acid foods (pH>4.6) require more robust oxygen barriers to prevent spoilage and oxidation during extended shelf life. They typically undergo more severe thermal processing (F₀≥6) to ensure commercial sterility. Acid foods (pH≤4.6) are more resistant to microbial spoilage and may require less aggressive thermal processing, but pouches must withstand potentially corrosive product interaction. Material selection is optimized accordingly, with low-acid applications often requiring additional oxygen barrier layers or higher barrier properties.

Q: How can I validate the shelf-life of products in retort pouches?

A: Shelf-life validation combines accelerated and real-time testing approaches. Accelerated testing typically involves storage at elevated temperatures (e.g., 35-45°C) to accelerate degradation mechanisms, while monitoring critical quality attributes and microbial stability. Real-time testing under actual storage conditions provides definitive validation. Both approaches should assess multiple quality parameters including flavor, texture, color, nutrient retention, and package integrity throughout the target shelf-life period. Mathematical modeling based on reaction kinetics can help extrapolate results to predict shelf-life under various conditions.

Q: What are the critical control points in retort pouch manufacturing?

A: Critical control points include adhesive application and curing in lamination, seal formation parameters (temperature, pressure, dwell time), retort processing conditions (temperature profile, pressure control, F₀ achievement), cooling water quality (to prevent post-process contamination), and package handling to prevent damage to seals or pouch structure. Each requires specific monitoring procedures, control limits, and corrective action protocols as part of a comprehensive quality management system.

Q: How do I troubleshoot headspace oxygen issues in retort pouches?

A: Excessive headspace oxygen can result from insufficient vacuum during filling, air entrapment in viscous products, oxygen permeation through materials or seals, or inadequate oxygen scavenging systems. Diagnostic approaches include headspace gas analysis using non-destructive methods, package integrity testing to identify potential leaks, process observation to identify air entrapment during filling, and material testing to verify oxygen barrier properties. Solutions may include modifying filling parameters, improving vacuum systems, or incorporating active oxygen scavenging technologies.

By mastering these technical aspects and applying the comprehensive knowledge presented throughout this guide, packaging professionals can successfully implement and optimize retort pouch technology for diverse applications, achieving the perfect balance of product protection, consumer convenience, and operational efficiency.
