Quick Answer: Which Material Should I Choose?
The best material for your flat bottom bag depends on three key factors: product sensitivity, shelf life requirements, and brand positioning.
Quick Selection Guide:
• Maximum barrier protection → Aluminum Foil Laminate (PET/AL/PE)
• Natural, artisanal look → Kraft Paper (Kraft/PET/AL/PE)
• Cost-effective premium → Metalized PET (PET/VMPET/PE)
• Product visibility → Clear PET (PET/PE)
Sustainability priority → Mono-PE or PCR materials
Table of Contents
1. Understanding Flexible Packaging Materials
2. Material Layer Structure Explained
3. Material Options Comparison
4. Barrier Properties Deep Dive
5. Product-Material Matching Guide
6. Sustainable Packaging Options
7. How to Choose the Right Material
8. Frequently Asked Questions
1. Understanding Flexible Packaging Materials
Flexible packaging materials are the foundation of effective product protection. Unlike rigid containers, flexible packaging uses multi-layer laminate structures that combine different materials to achieve optimal barrier properties, durability, and aesthetic appeal.
The choice of material directly impacts:
• Product freshness and shelf life (barrier protection)
• Brand perception (visual appearance and tactile feel)
• Packaging cost (material price and minimum order quantities)
• Environmental impact (recyclability and sustainability)
2. Material Layer Structure Explained
Modern flexible packaging typically consists of 2-4 layers, each serving a specific function:
Layer | Common Materials | Function |
Outer Layer | PET, BOPP, Kraft Paper | Printing surface, mechanical protection, brand presentation |
Barrier Layer | Aluminum Foil, VMPET, EVOH | Blocks oxygen, moisture, light, and odors |
Tie Layer | Adhesive | Bonds layers together, ensures laminate integrity |
Inner Layer | PE, CPP | Heat seal capability, food-safe contact surface |
![Flat Bottom Bag Materials Guide]( "Flat Bottom Bag Materials Guide")
Figure 1: Multi-Layer Laminate Structure for Flexible Packaging
Pro Tip: The total thickness of a flat bottom bag typically ranges from 80-150 microns. Thicker materials (120μm+) are recommended for heavy products like pet food or bulk packaging. |
3. Material Options Comparison
Here is a comprehensive comparison of the five most common material options for flat bottom bags:
Material | Structure | Barrier | Cost | Best For |
Kraft Paper | Kraft/PET/AL/PE | ★★★★☆ | $$ | Coffee, organic, artisanal products |
Aluminum Foil | PET/AL/PE | ★★★★★ | $$$ | Tea, supplements, max freshness |
Metalized PET | PET/VMPET/PE | ★★★★☆ | $$ | Snacks, nuts, cost-effective premium |
Clear PET | PET/PE | ★★☆☆☆ | $ | Candy, visual display, short shelf life |
Mono-PE | PE/EVOH/PE | ★★★☆☆ | $$ | Eco-conscious, recyclable packaging |
![Flat Bottom Bag Materials Guide]( "Flat Bottom Bag Materials Guide")

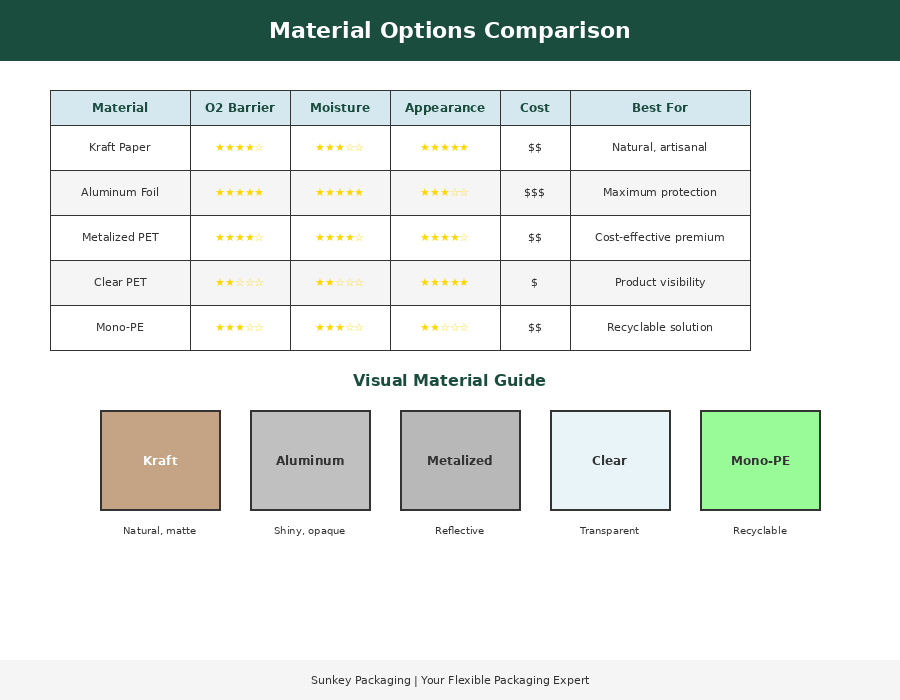

Figure 2: Material Options Visual Comparison Chart
4. Barrier Properties Deep Dive
Barrier properties determine how well your packaging protects products from the four enemies: oxygen, moisture, light, and odors.
4.1 Understanding OTR and WVTR
• OTR (Oxygen Transmission Rate): Measures oxygen permeability in cc/m²/day. Lower is better.
• WVTR (Water Vapor Transmission Rate): Measures moisture permeability in g/m²/day. Lower is better.
Material | OTR (cc/m²/day) | WVTR (g/m²/day) | Rating |
Aluminum Foil (7-9μm) | < 0.01 | < 0.01 | Complete barrier |
Metalized PET (12μm) | 0.3 - 0.5 | 0.3 - 0.5 | Excellent |
EVOH (5μm) | 0.1 - 0.3 | 2.0 - 4.0 | Excellent O₂, moderate H₂O |
Standard PET (12μm) | 10 - 20 | 5 - 10 | Moderate |
Standard PE (50μm) | 150 - 300 | 2 - 5 | Poor O₂, good H₂O |
![Flat Bottom Bag Materials Guide]( "Flat Bottom Bag Materials Guide")
Figure 3: Understanding Barrier Properties
Pro Tip: For products requiring maximum freshness (coffee, tea, supplements), choose materials with OTR < 1.0 cc/m²/day. This typically means aluminum foil or metalized PET barriers. |
5. Product-Material Matching Guide
Different products have different packaging requirements. Here is our expert recommendation for common product categories:
Product | Recommended Material | Structure | Key Reason |
Coffee | Kraft Paper + Foil | Kraft/PET/AL/PE | Complete O₂ barrier, natural aesthetic |
Tea & Herbs | Aluminum Foil | PET/AL/PE | Maximum aroma protection |
Pet Food | Heavy Laminate | PET/AL/PE (150μm+) | Durability + barrier for large volumes |
Nuts & Snacks | Metalized PET | PET/VMPET/PE | Good barrier, cost-effective |
Supplements | Aluminum Foil | PET/AL/PE | Maximum protection for sensitive ingredients |
Dried Fruits | Clear or Kraft + Window | PET/PE or Kraft/window | Product visibility drives sales |
![Flat Bottom Bag Materials Guide]( "Flat Bottom Bag Materials Guide")

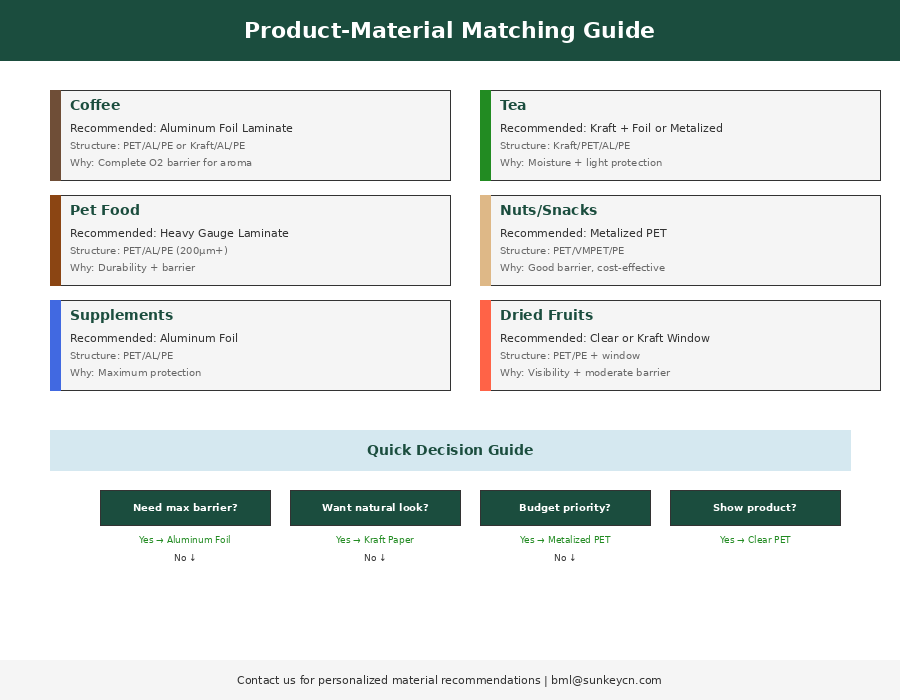

Figure 4: Product-Material Matching Recommendations
6. Sustainable Packaging Options
Environmental responsibility is increasingly important for brands. Here are your sustainable packaging options:
Option | Structure | Barrier | Best For |
Mono-PE (Recyclable) | PE/EVOH/PE | ★★★☆☆ | Brands with recyclability requirements |
PCR Content | Contains recycled plastic | ★★★★☆ | Reducing virgin plastic usage |
FSC Kraft Paper | Certified sustainable | ★★★★☆ | Organic and natural product brands |
Compostable | PLA/PBAT based | ★★☆☆☆ | Premium eco-conscious brands |
Important: Sustainable options typically have lower barrier properties than traditional aluminum foil laminates. Consider your product's shelf life requirements when choosing eco-friendly materials. |
![Flat Bottom Bag Materials Guide]( "Flat Bottom Bag Materials Guide")

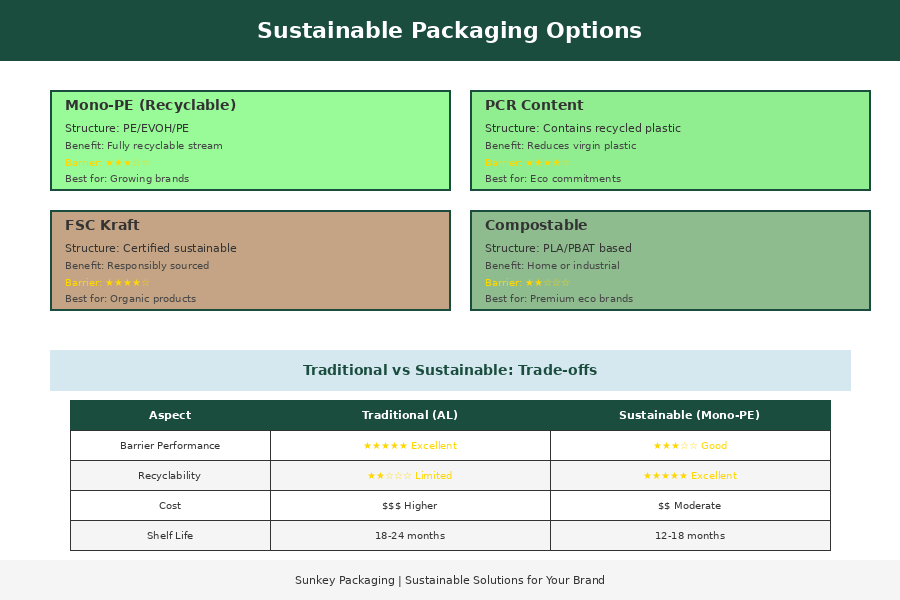

Figure 5: Sustainable Packaging Material Options
7. How to Choose the Right Material
Follow this decision framework to select the optimal material for your packaging:
7.1 Decision Checklist
1. Define shelf life requirements (How long must product stay fresh?)
2. Identify product sensitivities (Oxygen? Moisture? Light?)
3. Consider brand positioning (Premium? Natural? Eco-friendly?)
4. Evaluate budget constraints (Material cost vs. value perception)
5. Check sustainability requirements (Regulatory or brand commitments)
![Flat Bottom Bag Materials Guide]( "Flat Bottom Bag Materials Guide")

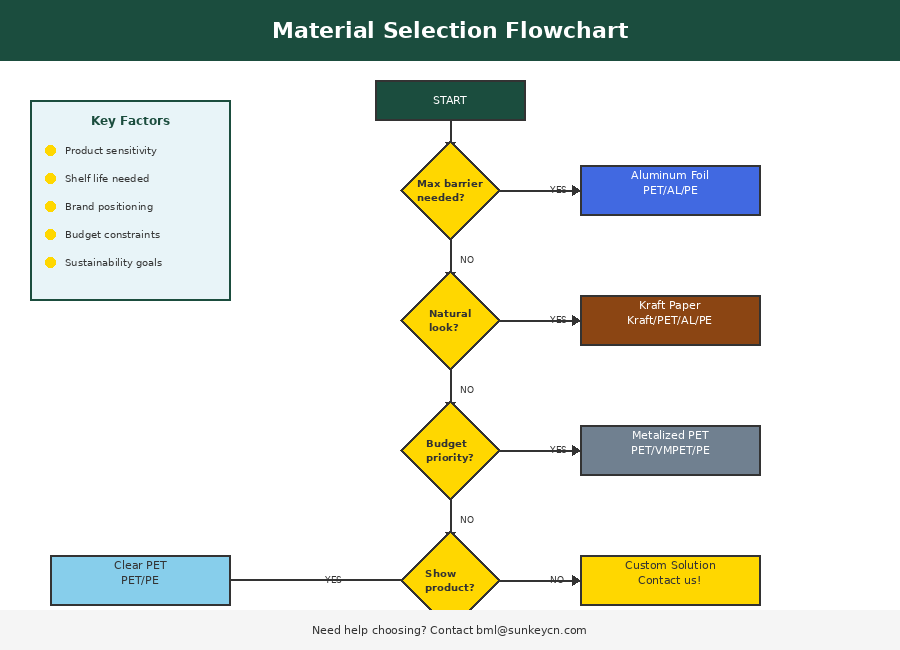

Figure 6: Material Selection Decision Flowchart
8. Frequently Asked Questions (FAQ)
Q1: What is the best material for coffee packaging?
A: For coffee, we recommend kraft paper with aluminum foil laminate (Kraft/PET/AL/PE). This provides complete oxygen barrier to preserve aroma while giving an artisanal appearance. Always include a degassing valve for freshly roasted coffee.
Q2: Can I see through aluminum foil packaging?
A: No, aluminum foil is completely opaque. If product visibility is important, consider adding a clear window to your design. The window area will have lower barrier properties, so it's best for products with shorter shelf life or less sensitivity to oxygen.
Q3: What is metalized PET and how does it compare to aluminum foil?
A: Metalized PET (VMPET) is a thin layer of aluminum vacuum-deposited onto PET film. It provides approximately 90% of the barrier performance of aluminum foil at lower cost. It's ideal for products that need good protection but not the absolute maximum barrier.
Q4: Are recyclable flat bottom bags available?
A: Yes! Mono-PE (polyethylene) structures with EVOH barrier are fully recyclable in the PE stream. These provide good barrier properties while meeting recyclability requirements. Note that barrier performance is slightly lower than aluminum foil options.
Q5: What thickness should I choose for heavy products?
A: For heavy products (1kg+) like pet food or bulk items, we recommend 120-150 micron total thickness. This provides adequate puncture resistance and durability. For smaller packages (under 500g), 80-100 microns is typically sufficient.
Q6: How long will products stay fresh in different materials?
A: Typical shelf life by material: Aluminum foil laminate: 18-24 months; Metalized PET: 12-18 months; Clear PET: 6-12 months; Mono-PE recyclable: 12-18 months. Actual shelf life depends on your specific product and storage conditions.
Q7: Can I print on all material types?
A: Yes, all material types support high-quality printing. Kraft paper provides a natural canvas effect, while PET films offer vibrant color reproduction. Matte or gloss finishes can be applied to enhance the appearance on any material.
Q8: What is the minimum order quantity for custom materials?
A: MOQ depends on the complexity: Stock bags (plain materials): 500 pcs; Custom printed standard materials: 5,000 pcs; Custom materials/structures: 10,000 pcs. Contact us for special arrangements on smaller orders.
