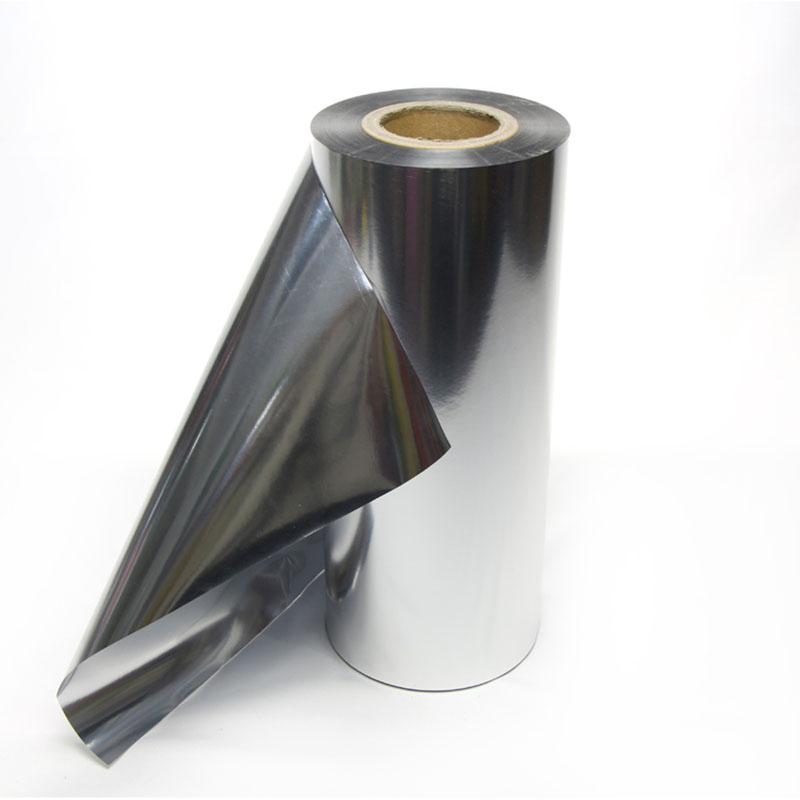

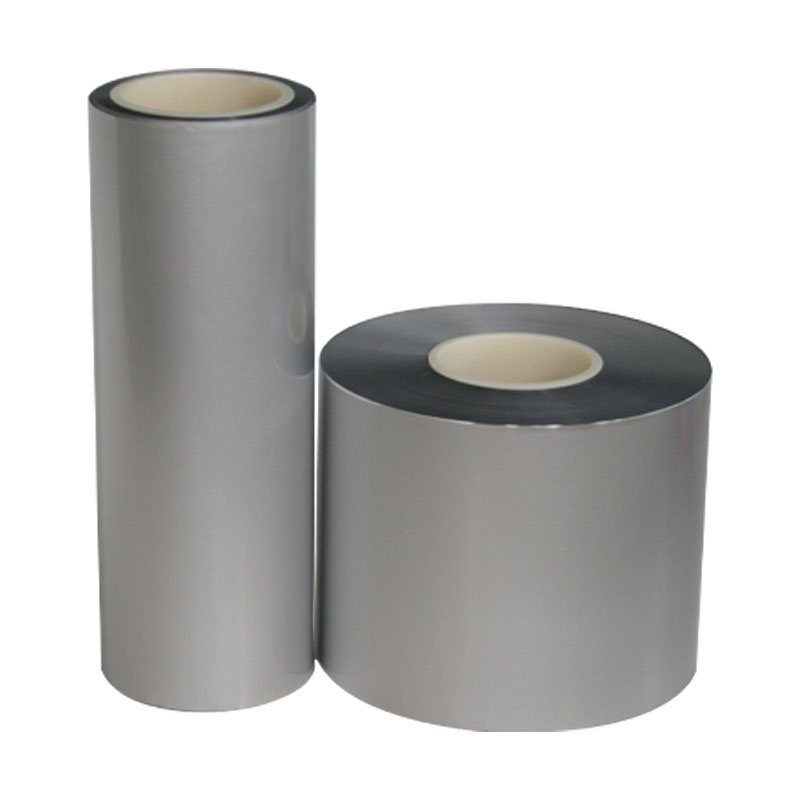

High Barrier Energy Storage Battery Packaging Film - A Symbol of Reliability and Stability
The products have excellent mechanical strength, electrical insulation and chemical corrosion resistance, ensuring long-term stable operation of the battery in various working environments and significantly extending the service life of the energy storage system, which is especially suitable for large-scale energy storage power stations, household energy storage systems and industrial-level energy storage devices.
Our energy storage battery film adopts a precision-designed eleven-layer composite structure (PET/Anti-C/AL/Anti-C/CPP), with each layer professionally optimized to meet the stringent requirements of energy storage applications. The outer layer is made of high-strength 12μm PET film with excellent mechanical protection and printability. The core barrier layer is made of 9μm high-purity aluminum foil, which is rolled in a special process to keep pinhole density to less than 0.5 per m². Both sides of the aluminum foil are coated with a patented 2μm anti-corrosion coating to effectively resist electrolyte erosion. The inner layer is made of 80μm modified CPP material with 5% low melting point copolymer added to enhance the heat sealing performance. The overall material thickness is controlled at 105±3μm and weight is 123±3g/m². The product was 100% optically inspected to ensure no visible defects, and the insulation performance was verified by high voltage electrical testing.
Advantages
Our eleven-layer structural battery film offers significant performance advantages over traditional three- or four-layer composite films. The dual anti-corrosion coating design extends the product's resistance to electrolyte immersion testing by a factor of three, reaching over 5,000 hours without significant performance degradation. A special aluminum foil treatment process reduces oxygen transmission rate to 0.0005 cc/m²-24h-atm, 80% lower than industry standard products. The modified CPP heat-sealable layer can achieve a sealing strength of 28N/15mm in 1 second at 170°C, which is 25% higher than ordinary products, and the heat-sealable temperature window is ±10°C wide, which greatly improves the fault tolerance of the production process. In addition, our products still maintain good flexibility in the -40°C low-temperature environment, no cracking phenomenon in the cold bending test, and in the 85°C high temperature dimensional change rate control within 0.5%, far better than the industry average of 2%. The product has passed the UL94 V-0 flame retardant rating test, providing additional security.
Scenarios
Lithium-ion batteries and other energy storage devices
Benefits
Using our high-performance energy storage battery film, customers can significantly improve the reliability and service life of their products. Experimental data shows that energy storage systems using our battery films have a service life of about 40% longer under wet thermal cycling test conditions (85°C/85% RH), and the excellent mechanical protection performance reduces the damage rate of batteries in drop tests by 65%, greatly improving the reliability of the product during transportation and installation. For large-scale energy storage projects, this translates into life cycle cost savings of about $1.5 million per 100 MWh of energy storage system. In addition, the excellent electrical safety performance reduces the risk of system fires, providing users with a higher level of safety.
Product Parameters
This table lists in detail the information and payment methods for packaging purchases, providing a comprehensive reference for your wholesale purchasing decisions.
Order Key Information
Details
Certification
ISO9001, BRC, SGS, FDA, FSSC22000,GRS
Material
PET/Anti-C/AL/Anti-C/CPP
Key Features
safety
Applications
Industrial
MOQ
5000m2
Port
Shanghai,China
International Commercial Terms
FOB, EXW, DDP, CIF
Payment
LC, T/T, Paypal
Product Features
Our energy storage battery film adopts a precision-designed eleven-layer composite structure (PET/Anti-C/AL/Anti-C/CPP), with each layer professionally optimized to meet the stringent requirements of energy storage applications. The outer layer is made of high-strength 12μm PET film with excellent mechanical protection and printability. The core barrier layer is made of 9μm high-purity aluminum foil, which is rolled in a special process to keep pinhole density to less than 0.5 per m². Both sides of the aluminum foil are coated with a patented 2μm anti-corrosion coating to effectively resist electrolyte erosion. The inner layer is made of 80μm modified CPP material with 5% low melting point copolymer added to enhance the heat sealing performance. The overall material thickness is controlled at 105±3μm and weight is 123±3g/m². The product was 100% optically inspected to ensure no visible defects, and the insulation performance was verified by high voltage electrical testing.
Advantages
Our eleven-layer structural battery film offers significant performance advantages over traditional three- or four-layer composite films. The dual anti-corrosion coating design extends the product's resistance to electrolyte immersion testing by a factor of three, reaching over 5,000 hours without significant performance degradation. A special aluminum foil treatment process reduces oxygen transmission rate to 0.0005 cc/m²-24h-atm, 80% lower than industry standard products. The modified CPP heat-sealable layer can achieve a sealing strength of 28N/15mm in 1 second at 170°C, which is 25% higher than ordinary products, and the heat-sealable temperature window is ±10°C wide, which greatly improves the fault tolerance of the production process. In addition, our products still maintain good flexibility in the -40°C low-temperature environment, no cracking phenomenon in the cold bending test, and in the 85°C high temperature dimensional change rate control within 0.5%, far better than the industry average of 2%. The product has passed the UL94 V-0 flame retardant rating test, providing additional security.
Scenarios
Lithium-ion batteries and other energy storage devices
Benefits
Using our high-performance energy storage battery film, customers can significantly improve the reliability and service life of their products. Experimental data shows that energy storage systems using our battery films have a service life of about 40% longer under wet thermal cycling test conditions (85°C/85% RH), and the excellent mechanical protection performance reduces the damage rate of batteries in drop tests by 65%, greatly improving the reliability of the product during transportation and installation. For large-scale energy storage projects, this translates into life cycle cost savings of about $1.5 million per 100 MWh of energy storage system. In addition, the excellent electrical safety performance reduces the risk of system fires, providing users with a higher level of safety.
Product Parameters
This table lists in detail the information and payment methods for packaging purchases, providing a comprehensive reference for your wholesale purchasing decisions.
Order Key Information
Details
Certification
ISO9001, BRC, SGS, FDA, FSSC22000,GRS
Material
PET/Anti-C/AL/Anti-C/CPP
Key Features
safety
Applications
Industrial
MOQ
5000m2
Port
Shanghai,China
International Commercial Terms
FOB, EXW, DDP, CIF
Payment
LC, T/T, Paypal
